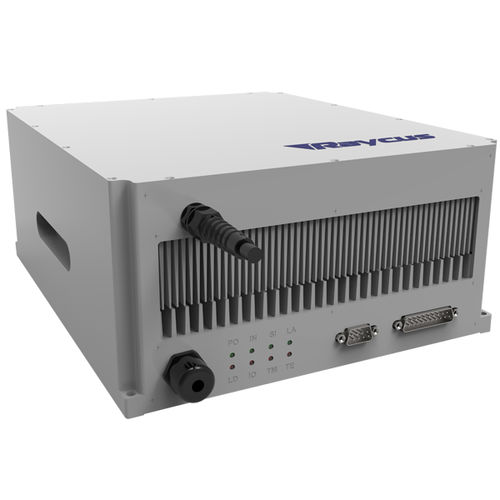

Direct diode laser RFL-A200D

pulsedfibervisible

Medium powered fiber delivered direct diode laser is mainly used for heat conduction welding with low material thickness. With heat conduction welding, the laser melts the sheets along the intended joint. The melts of the joint partners merge together and then cool off to the actual welding seam. Conduction welding is similar to spot welding but allows the laser beam to move after the melt pool is produced. Laser heat conduction welding can be realized more quickly and lower material distortion than usual welding methods. Additionally, smooth and pore-free welding seams are created that do not need any post-processing. Technical characteristics - Application Market: laser Soldering and laser beam-transmission welding plastic Optical Properties . Output power instability: <2% . Modulation Frequency(Hz):50-5k . Red Guide Laser:650±10nm，0.25～1mW Output characteristics . Terminal Type:QBH . Fiber core(μm):200 . Fiber NA:0.22 . Delivery Cable Length:5 Electronic control characterstics . Power Supply: 48VDC±10% . Control Method:EXT control/RS232l Connect Port:DB25、DB9 Other characteristics . Dimensions(mm) width*height*depth:260*138*340(Handle included) . Cooling method: Air-cooled . Power Adjusting Range(%):10-100 Application Of 200W Fiber Delivered Direct Diode Lasers RFL-A200D 3C electricity Optical communication Micro-electricity Camera Mold Home appliances car lighting medical packaging
