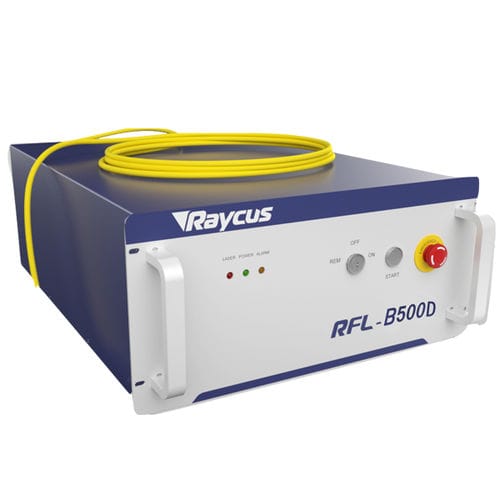

Blue laser RFL-B500D

pulsedfiberinfrared

The welding of gold, silver, copper and other non-ferrous metals can be applied to the welding of new energy batteries, 3C and alloy welding and other fields. The 500W blue laser is generally used for applications, and several kilowatts of infrared lasers are required to complete the same application. Therefore, blue light only needs lower power in the same application to ensure the same efficiency and cleanliness. Technical characteristics - High beam quality - High absorption rate of non-ferrous metals - High stability Optical Properties . Power Adjusting Range(%):10-100/Output power instability: <3% . Modulation Frequency(Hz):50-10kRed light indicated power(mW):0.25-1 Output characteristics . Fiber core diameter (μm): 400 . Fiber NA: 0.22 . Beam Divergence(rad):0.22 . Delivery Cable Length:5 Electronic control characteristics . Operation Voltage(V AC): Single Phase 220VAC±10%,50/60Hz AC . Control Method:RS-232/AD Other characteristics . Dimensions(mm) width*height*depth:447*238*850(Handle included) . Cooling method: Air-cooled Application Of 500W Blue Fiber Delivered Direct Diode Laser RFL-B500D For Welding In the welding of gold, silver, copper and other non-ferrous metals, it can be used in the welding of new energy batteries, 3C and alloy welding and other fields.
