LAN fault recorder UHV-602

USBportable analogindustrial

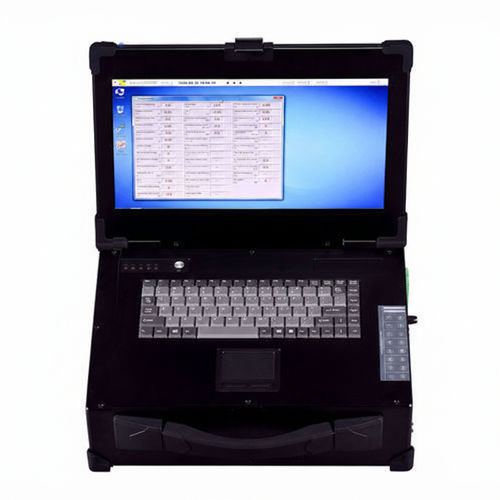

UHV-602 Portable Waveform Recorder is a portable instrument that integrates electrical testing, fault waveform recording and comprehensive power monitoring, capable of steady-state measurement and transient recording analysis across power systems.

Key features

• Fault recorder: monitors operating parameters of connected equipment and records data for fault analysis when events occur.
• Real-time monitoring: live display and supervision of analog quantities and switch/discrete signals.
• Calculation capabilities: real-time calculation and display of active/reactive power, frequency, positive/negative/zero sequence, vector sum/difference and phase angle.
• Generator testing: supports generator startup electrical tests (no-load, short-circuit, main excitation no-load/load) and excitation tests (zero-start boost, de-excitation, 10% step), as well as parallel and user-defined tests.
• Portable and online use: suitable for online monitoring of key power equipment or portable monitoring and fault analysis of industrial assets; provides processed real-time data to external systems.

Technical specifications

• Enclosure: Portable industrial control case
• Operating system: Embedded WES7
• Display: 15.6-inch LCD, resolution 1366 × 768
• Storage: 120 GB SSD
• Interfaces: 1 LAN port, 2 USB ports
• Keyboard / pointing device: 88-key keyboard, touchpad
• Power supply: AC 85–260 V, 50 Hz (±0.5 Hz); DC 110–370 V
• Dimensions (L × W × H): 407 × 307 × 150 mm
• Weight: 10 kg

Applications

• Online monitoring and fault recording for power systems and substations
• Portable diagnostics and transient analysis for industrial electrical equipment
• Data provider for SCADA/EMS and analysis platforms
