Impedance tester UHV-725

capacitancepowerfrequency

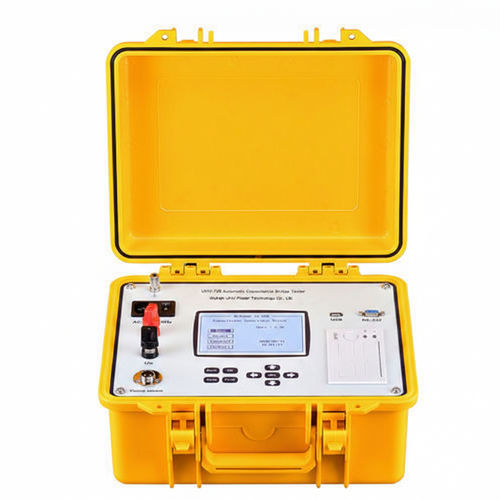

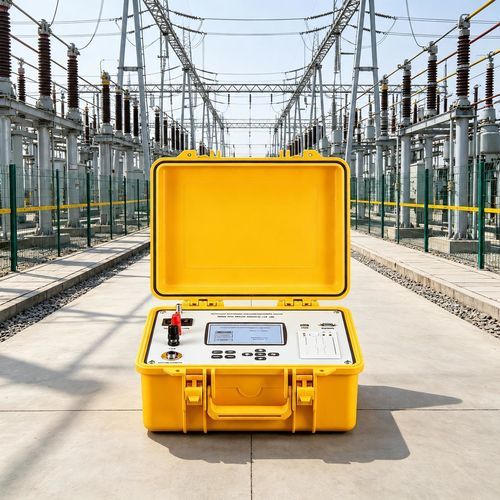

The UHV-725 Automatic Capacitance and Inductance Tester measures per-phase capacitance, total capacitance and inductance of compensation capacitors. It is designed to simplify wiring and operation to reduce maintenance workload and improve on-site testing efficiency and safety.

Key features

• Measure single capacitance of a group of parallel capacitors without disconnecting wiring; displays measured capacitance along with voltage, current, loss, frequency and impedance.
• Displays measured inductance together with voltage, current, loss, capacitance, frequency and impedance.
• Displays measured current and related parameters such as frequency during testing.
• Supports measurement of capacitor groups and both △ (delta) and Y (wye) configurations.
• 320×240 large LCD with menu prompts for easy operation.
• Built-in large-capacity non-volatile memory: each test option can store up to 256 data sets.
• Built-in USB interface for exporting stored data to facilitate report generation.
• Built-in high-precision real-time clock for date/time stamping of measurements.
• Includes a high-speed micro thermal printer for printing measurements and historical data.
• Overcurrent protection on the test power supply: output short circuit will not damage the instrument.

Measurement ranges and accuracy

• Measurement range:
  • Capacitance: 2 µF ~ 2000 µF
  • Inductance: 5 mH ~ 5000 mH
  • Current: 20 mA ~ 2000 mA
• Measurement accuracy:
  • Capacitance: ±(1% reading + 2 digits)
  • Inductance: ±(1% reading + 5 digits)
  • Current: ±(1% reading + 2 digits)

Technical specifications

• Dimensions: 345 mm × 295 mm × 175 mm
• Instrument weight: 7 kg
• Operating ambient temperature: -10°C ~ 50°C
• Ambient humidity: ≤85% RH
• Operating power supply: AC 220 V ±10%
• Power frequency: 50 ±1 Hz
