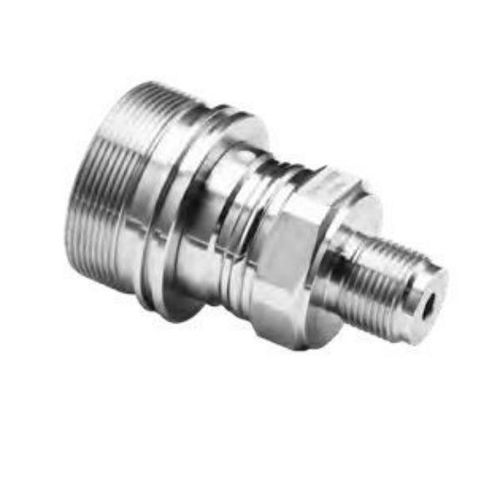

Relative pressure sensor BW-DKS-CP300

siliconMEMSanalog

BW-DKS-CP300 pressure sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology and original monocrystalline silicon double beam suspension design, which achieves excellent overpressure performance and also ensures excel Measuring principle - Double Beam Suspension / Monocrystalline Silicon Sensors bridge resistor - 10kΩ (at 25 ° C) Power source Voltage - 3~8V DC，constant voltage supply Response time - 10ms Adopting highly stable monocrystalline silicon sensor chip made of German advanced MEMS technology, embedded with pressure measuring cartridge and signal processing module imported from Germany, to ensure that the transmitted signals have a very high degree of accuracy and consistency. -Excellent overpressure performance -Excellent environmental adaptability Apply to a variety of harsh environments, working temperature range -40 ~ 85 ℃. Intelligent temperature compensation, to protect the sensor from temperature and overpressure, the site of the integrated measurement error control to a smaller degree. -Convenient installation The sensor is equipped with a variety of mounting accessories, suitable for different installation requirements. -Suitable for a wide range of housings Standard M27, M45, G55 interfaces are suitable for a wide range of housings, and customised housing connections are also available.
