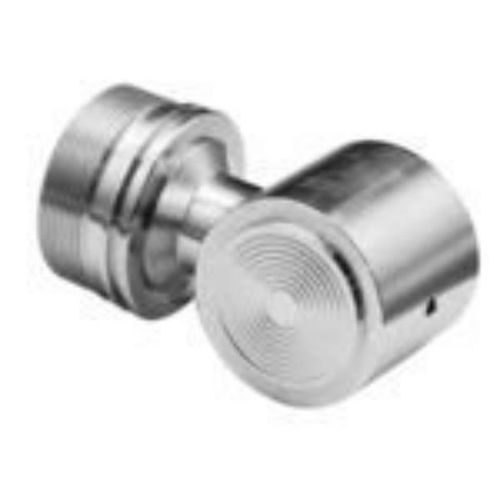

Differential pressure sensor BW-DKS-DP300

siliconMEMSanalog

BW-DKS-DP300 Differential Pressure Sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology and original monocrystalline silicon double beam suspension design, which achieves excellent overpressure performance and also Measuring principle - Double Beam Suspension / Monocrystalline Silicon Sensors bridge resistor - 10kΩ (at 25 ° C) Power source Voltage - 3~8V DC，constant voltage supply Response time - 10ms Adopting highly stable monocrystalline silicon sensor chip made by German advanced MEMS technology, embedded with pressure measuring cartridge and signal processing module imported from Germany, which ensures high accuracy and consistency of the transmitted signal. -Excellent overpressure performance -Excellent environmental adaptability Apply to all kinds of harsh environments, working temperature range -40~85℃. Intelligent temperature compensation protects the sensor from the effects of temperature and overpressure, controlling the overall measurement error on site to a smaller degree. -Convenient installation The sensor is equipped with a variety of mounting accessories, suitable for different installation requirements. -Suitable for a wide range of housings Standard M27, M45, G55 interfaces are suitable for a wide range of housings, and customised housing connections are also available.
