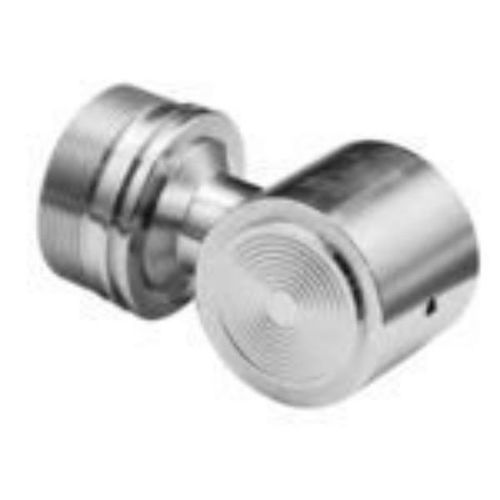

Differential pressure sensor BW-DKS-DP600

siliconMEMS5VDC

BW-DKS-DP600 Differential Pressure Sensor adopts monocrystalline silicon sensor chip made of German advanced MEMS technology and original monocrystalline silicon double-beam suspension design, which achieves good over-pressure performance and ensures b Measuring principle - Double Beam Suspension / Monocrystalline Silicon Sensors bridge resistor - 10kΩ (at 25 ° C) Response time - 10ms Adopting highly stable monocrystalline silicon sensor chip made of German advanced MEMS technology, embedded with pressure measuring cartridge and signal processing module imported from Germany, which ensures high accuracy and consistency of the transmitted signal. -Excellent overpressure performance -Excellent environmental adaptability Apply to a variety of harsh environments, working temperature range -40 ~ 85 ℃. Intelligent temperature compensation, to protect the sensor from the effects of temperature and overpressure, the site of the integrated measurement error control to a relatively small range. -Convenient installation The sensor is equipped with various mounting accessories, suitable for different installation requirements. -Suitable for a wide range of housings Standard M27, M45, G55 interfaces are suitable for a wide range of housings, and customised housing connections are also available.
