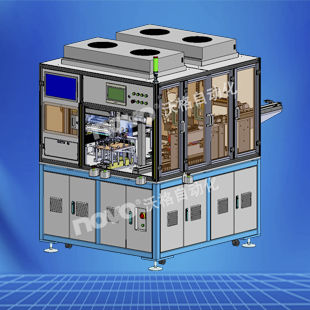

Automatic assembly machine Intelligent REF

for industrial applicationsplate

This machine can automatically transfer and locate backlight plate, and load, clean, suck, locate, assemble, press and check REF. It adopts visual location with scan function, and bind visual information with product together with one-key changeover function. Boundary Dimension: L1600mm, W1700mm (excluding unloading transfer arm), H2050mm (excluding tower lamp, FFU) Weight:1200kg Power Supply：AC220V，5KW Air Supply：0.5~0.7MPa，≥300L/min CT:10s Assemble Precision:±0.15mm Product Specification：10.1~15.6 Inch REF Load Thickness：100mm •CCD Visual System: Hikvision CCD, Cognex Vision Pro Software •Robot: EPSON IPC：ADLINK PLC：OMRON Batch loading of REF, with long change period and short loading time REF and backlight plate adopt CCD visual location with high precision Adopt 6-axis transfer arm to assemble REF with flexibility and fast speed Design based on dust-free high standard to ensure the control of internal clean class and yield. The clean class is up to a thousand level Be equipped with scan function. It can bind data from visual location and checking and product and be traced to ensure yield; Be equipped with one-key changeover function; switch to different products quickly to ensure production efficiency; Production data within 30 days can be saved, and can be connected to MES system.
