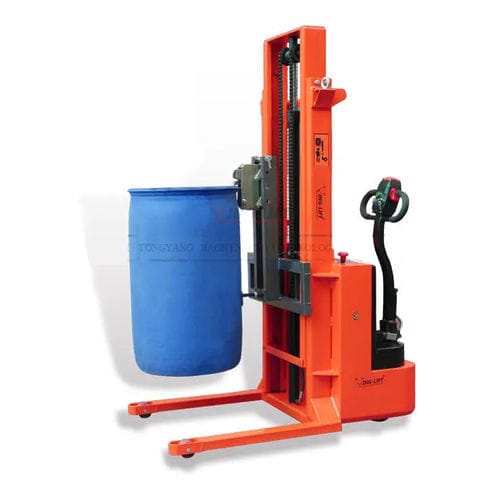

Full Electric Drum Carrier YL650B
Details Futrues
1.Max. Load capacity 650kg;
2.Imported electrical vehicle exclusive walking control system;
3.Power drive, lift and tilt for ergonomic 55 steel drums pouring;
4.Attention:This model with step-less speed regulator,high-power reversing switch,integrated hydraulic pump station,AC power walking driving wheel;
Model - YL650B
Drive type - / - Battery
Operating type - / - Pedestrian
Load capacity - kg - 650
Lifting height - mm - 2400
Overall height - mm - 1850
Overall length - mm - 1450
Overall width - mm - 865
Turning radius - mm - 1650
Grade ability (Fully-loaded/no-load) - % - 3/5
Driving wheel size - mm - Ø250*80
Wheel - / - Polyurethane
Braking type - / - Electromagnetic
Drive motor power - kw - 1.2
Lifting motor power - kw - 2.2
Noise level - db(A) - <70
Batteryvoltage/capacity - V/Ah - 24/30
Charger - V/A - 24/120
Net weight - kg - 470
Drum rotating range - ° - /
