Vessel tank

PTFEstainless steeltitanium

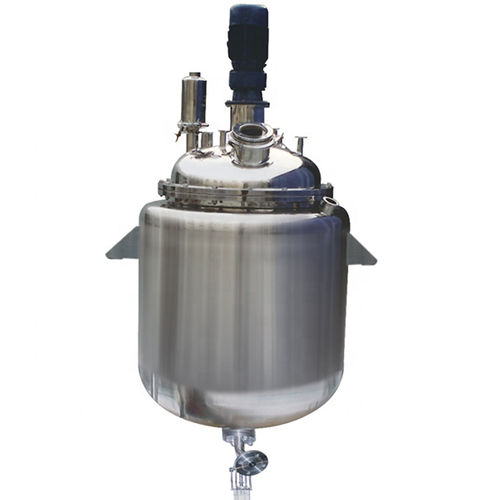

Crystallizing Tank can be manufactured by SS304, SS316L, Titanium, Hastelloy, PTFE lined or other materials. Its inside wall is treated with electrolytic mirror polishing or mechanical polishing while its outside wall uses SS304 full-welding structure, and its outside surface is treated with mirror polishing or matte polishing.0.2μm water delivery ventilation filter is installed on the crystallization tank. The crystallization tank can endure 121℃ high temperature sterilization, equipped with sanitary pressure meter. The outside connection of the tank uses sanitary rapid open connector. The crystallization tank is equipped with temperature monitoring device, 2 sight mirrors, cleaning ball and nitrogen inlet. The shaft seal uses special sanitary mechanical seal to protect the materials from pollution. The crystallization tank can use frequency conversion speed control device, then the rotation speed of mixing shaft has a wide adjustment range. Custom Service ➤Our Products for pharmaceutical and chemical industries 1. Multifunctional “Three in One” (filtering, washing and drying) 2. Crystallizing Tank, Reaction Kettle 3. Sterile double-cone dryer 4. Rake Vacuum Dryer /Paddle Vacuum Dryer 5. Plate-fin Heat Exchanger ➤Our advantage 1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel, Ti/HC22/Mone11 2.Customized Design: Double-Cone in 20L-20m³ Rake Dryer (with mechanical seal) in 16 m³ DN300-DN600 “Three in One” 3.Design/Calculation Software ➤Scope of business 1. On-site Inspection
