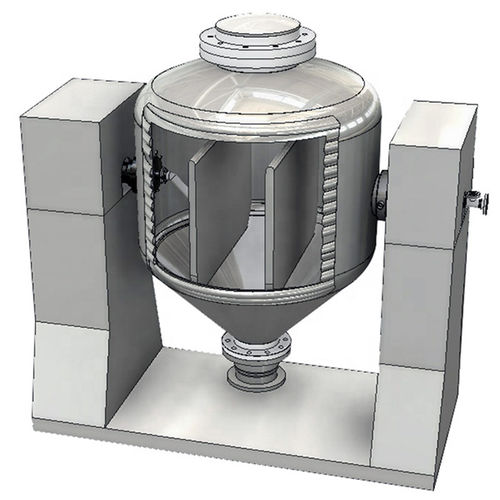

Vacuum crystallizer

Turn barrel to the horizontal position after feeding. At the same time, put refrigerant into jacket and internal heat conduction plate. Due to the direct contact between the heat plate and materials, heat exchange is uniform and fast, which not only improves the purity of materials, but also decrease the exchanging time and improve the productivity. After crystallization, switch on and rotate the equipment in 360°. Materials will be off from the barrel. Prepare for the next step to extract supernatant. The vacuum head is downward when you extract. After this step, adjust vacuum head upward. At the same time, switch on and rotate the equipment to make it vacuum and dry. When materials are dry enough, turn cone end downward, then completely discharge. Applications and Features Material: SS304, SS316L, Ti, Hastelloy-C, PTFE lined or other materials Applications:It is mainly used for protecting crystal form of some materials, of which they have high requirements for crystals’ purity in the crystallizing process, from being destroyed, for example, refined naphthalene, borneol, Lithium Hexafluorophosphate,pharmaceutical, etc. Comparing with the traditional crystallizer, blade is unnecessary. Cone head design is for fully discharging. Custom Service ➤Our Products for pharmaceutical and chemical industries 1. Multifunctional “Three in One” (filtering, washing and drying) 2. Crystallizing Tank, Reaction Kettle 3. Sterile double-cone dryer 4. Rake Vacuum Dryer /Paddle Vacuum Dryer 5. Plate-fin Heat Exchanger ➤Our advantage 1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
