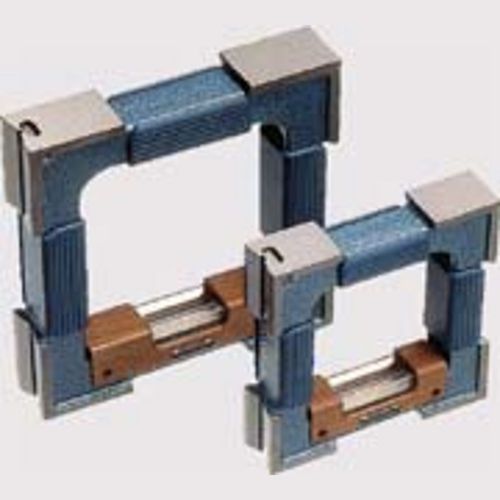

Spirit level 158 series
precisionhorizontalvertical

spirit level
spirit level
Add to favorites
Compare this product


Characteristics

Type
spirit
Other characteristics
precision, horizontal, vertical

Description

Standard version with two prismatic measuring bases bottom horizontal and left hand vertical, contact faces hand scraped for sensitivity 0.05 mm/m and better and two flat measuring bases top horizontal and right hand vertical, according to Standards DIN877 + DIN2276/1 Various options are possible (see specifications ) Simple adjustment of the zero-point and of rollover errors (twist) of the main vial, due to an ingenious adjusting system Excellent view on the vial from above and from the side The main vial being fixed in a special mounting device, the vial is absolutely free from any tensions Transversal vial with a sensitivity of 2-5 mm/m for easier handling of the level when measuring on horizontal shafts or in the vertical The prismatic bases are suitable for shaft diameters Ø 17 … Ø 135 mm, depending on the dimensions / Details see table below Special plastic handles on 3 sides eliminate the transfer and influence of the body temperature Packed in a wooden storage case Function: The FRAME SPIRIT LEVEL 58 SPIRIT is suitable for measurements on vertical and horizontal surfaces and shafts Optional magnetic inserts in the vertical and/or in the horizontal measuring bases assure an excellent adhesion to vertical shafts and surfaces Sensitivity: See specifications Twist stability according to WYLER standard: Rollover stability ±2 degrees
