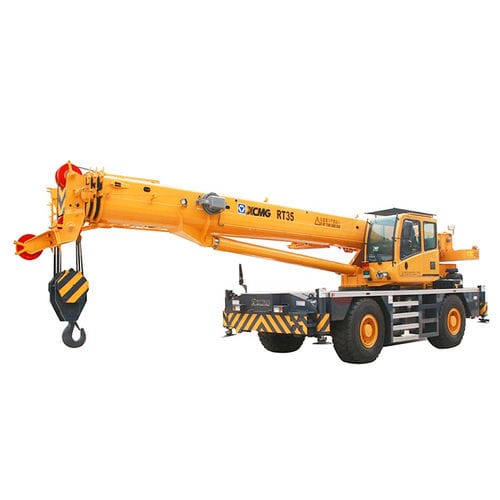

mobile crane / luffing jib / telescopic / rough terrain mobile crane / luffing jib / telescopic / rough terrain - RT35


  • Configuration:


  • Structure:

    luffing jib, telescopic

  • Operating environment:

    rough terrain

  • Other characteristics:

    hydraulic, diesel-powered

  • Lift capacity:

    35 t (39 us ton)

  • Working height:

    Max.: 45.1 m (147'11")

    Min.: 9.7 m (31'09")


RT35 is equipped with the two-axle loading chassis, which has two types of drive modes, four types of steering modes and backward-forward driving functions. It also has four sections of dodecagon main booms, H-type outrigger, fixed balance counterweight, as well as three working modes, including: hoisting with the support of outriggers, hoisting with the support of tire and hoisting when driving. It is widely used in oil field, mine, road and bridge construction, warehousing base and other construction sites.

Product Highlights:
Strong Power of Hoisting, Wide Range of Work
It has 32m main booms, 15m auxiliary booms, with the longest booms, highest comprehensive hoisting performance in the product of the same tonner.

Maneuvering and Flexible, Quick and Efficient
The max speed reaches 38km/h and the max gradeability is 55% and the min. turning radius is 5.7m. All these three factors make it flexible.

Safe and Reliable, No Worry to Handle
The product is equipped with lifting protection control system in case of overload, over-retracting and over-stretching as well as exclusive technology in this field like rear axle-wheel automatic return-control system and safety-driving automatic protection system. All these elevate its safety performance largely.
The product is equipped with top features in this field, professional matching upgrading and systematic evaluation test. And it has passed test like driving 11,000km and 10,000 times hanging. Both ensure its reliability.
