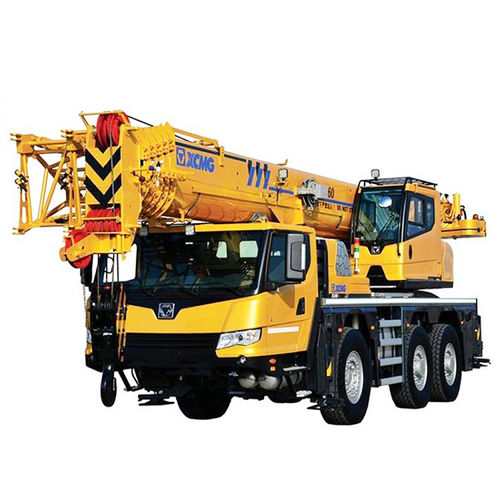

Mobile crane XCA60_E

for constructionall-terrainlifting

The XCA60_E All Terrain Crane is a "Internet +" smart crane, in which mobile Internet, mobile terminal remote control function are integrated. 1. Power and traveling performance * SINOTRUK MC11.35-30diesel engine, rated power 260kw, max. torque 1750N.m. * Max. travel speed 85Km/h, Max. grade ability 70%. 2. Independent heavy duty suspension system with single wishbone *The tires on left and right side move up/down separately to adapt to the road conditions, to effectively enhance the stability of steering operation at high speed and achieve excellent off-road performance when driving on the narrow road or the road with poor road conditions. 3. New highly efficient energy-saving hydraulic system * Advanced technologies such as variable displacement pumps and load sensitive hydraulic system matched with low speed and large torque slewing system, constant motor hoist system, and automatic regulation of the displacement with the open change of main valve contribute to reduced energy consumption more than 15% on average and the smoothness and fine control improved by 15%. * The min. stable hoisting speed is 2.5m/min and the min. stable slewing speed is 0.1°/s. 4. Compliant to the strictest standards * The crane is designed by complying with the strictest European standards. Its total length is not more than 12 m and width is less than 2.55 m. * Max. grade ability is 70% and min. turning diameter is 14.2 m.
