monitoring camera / infrared / SWIR / hyperspectral
Cheetah-640-CL

{{requestButtons}}

Characteristics

  • Function:

    monitoring

  • Spectrum:

    infrared, SWIR, hyperspectral

  • Technology:

    HD

  • Interface:

    Camera Link

  • Other characteristics:

    high-speed, InGaAs, high dynamic range, for research and development, thermoelectrically-cooled, ultra high-speed

Description

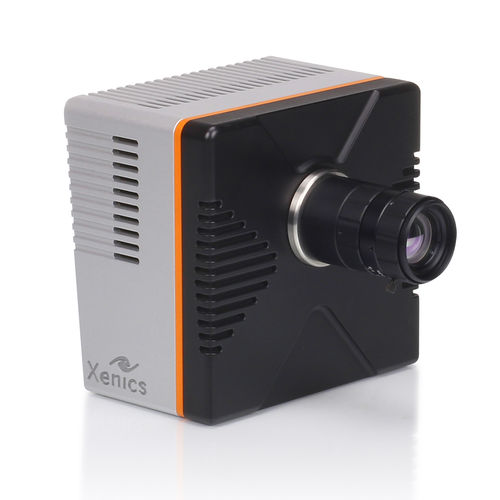

The Cheetah-640CL is manufactured by Xenics, and is a high-speed SWIR camera that is suitable for use in real-time motion analysis. The model is integrated with a high-speed InGaAs detector with a spectral band ranging from 0.9 μm to 1.7 μm and is available in varying frame rates ranging in 120, 400 and 1730 Hz speed. There is an option to integrate it with an InGaAs detector with a spectral band ranging from 0.4 μm to 1.7 μm.

It is versatile as it can be used with a variety of C-mount lenses, and it has a focal length of 25mm f/0.95. To minimize dark currents, the unit is integrated with a TE1 for array cooling, but there is an option to use the TE3.
