Signal generator ATG-2161pulsehigh-voltagesingle-channel
Add to favorites
Compare this product
Characteristics
- Type
- signal, pulse
- Other characteristics
- high-voltage, single-channel, with built-in display
Description

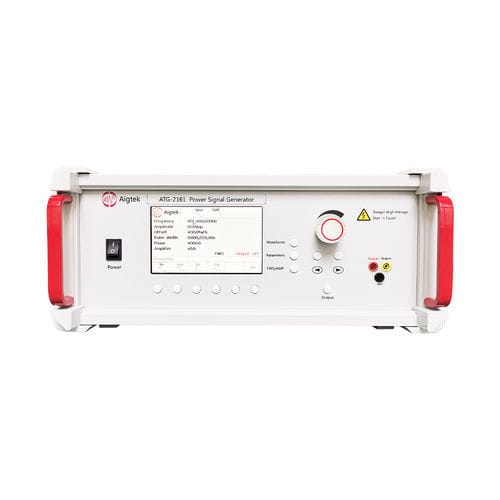

ATG-2161 Power Signal Source
l Capable of outputting sine waves, square waves,triangle waves, and pulse waves
l Internal or external input signal
l Maximum Output Voltage: 1600Vp-p (±800Vp)
l Maximum Output Current: 40mAp
l Bandwidth (-3dB): DC~150kHz
INTRODUCTION
The ATG-2161 is an ideal single-channe power signal source capable of outputting sine, square, triangle, and pulse waveforms. Users can select either internal or external input signals based on their needs. With a maximum output voltage of 16000Vp-p (±800V), it can drive high-voltage loads. The digitally adjustable voltage gain makes operation more convenient and user-friendly.
LCD PANEL DISPLAY
The LCD panel display dynamically shows the device status and parameters, offering a clear and intuitive interface.
VOLTAGE GAIN
When an external input signal is used, the device operates in amplifier mode. In this mode, the voltage gain is digitally adjustable from 0 to 240 times in 1 step increments. Combined with the gain display on the LCD panel, the voltage can be quickly and precisely adjusted as needed.
INPUT
The external signal input uses a BNC connector. When an internal input signal is used, the device functions in power signal source mode, allowing users to set waveform, frequency, voltage, and other parameters. When an external signal is connected, the device operates in amplifier mode, with an input impedance of 5kΩ. The output impedance is switchable, and adjusting the voltage gain achieves signal amplification.
OUTPUT
The output interface uses banana sockets, with a maximum output voltage of 1600Vp-p (±800Vp) and a maximum output current of 40mAp.
MONITORING PORTS
1/100 MonitorThe voltage of this port is 1/100 of that of the output port. The monitoring port is a BNC connector and can be connected to an oscilloscope for real-time monitoring of the output voltage.
Applications
Nondestructive Testing (NDT)
Soft Magnetic Material Testing
Transformer Testing
Various Semiconductor Testing
l Capable of outputting sine waves, square waves,triangle waves, and pulse waves
l Internal or external input signal
l Maximum Output Voltage: 1600Vp-p (±800Vp)
l Maximum Output Current: 40mAp
l Bandwidth (-3dB): DC~150kHz
INTRODUCTION
The ATG-2161 is an ideal single-channe power signal source capable of outputting sine, square, triangle, and pulse waveforms. Users can select either internal or external input signals based on their needs. With a maximum output voltage of 16000Vp-p (±800V), it can drive high-voltage loads. The digitally adjustable voltage gain makes operation more convenient and user-friendly.
LCD PANEL DISPLAY
The LCD panel display dynamically shows the device status and parameters, offering a clear and intuitive interface.
VOLTAGE GAIN
When an external input signal is used, the device operates in amplifier mode. In this mode, the voltage gain is digitally adjustable from 0 to 240 times in 1 step increments. Combined with the gain display on the LCD panel, the voltage can be quickly and precisely adjusted as needed.
INPUT
The external signal input uses a BNC connector. When an internal input signal is used, the device functions in power signal source mode, allowing users to set waveform, frequency, voltage, and other parameters. When an external signal is connected, the device operates in amplifier mode, with an input impedance of 5kΩ. The output impedance is switchable, and adjusting the voltage gain achieves signal amplification.
OUTPUT
The output interface uses banana sockets, with a maximum output voltage of 1600Vp-p (±800Vp) and a maximum output current of 40mAp.
MONITORING PORTS
1/100 MonitorThe voltage of this port is 1/100 of that of the output port. The monitoring port is a BNC connector and can be connected to an oscilloscope for real-time monitoring of the output voltage.
Applications
Nondestructive Testing (NDT)
Soft Magnetic Material Testing
Transformer Testing
Various Semiconductor Testing
