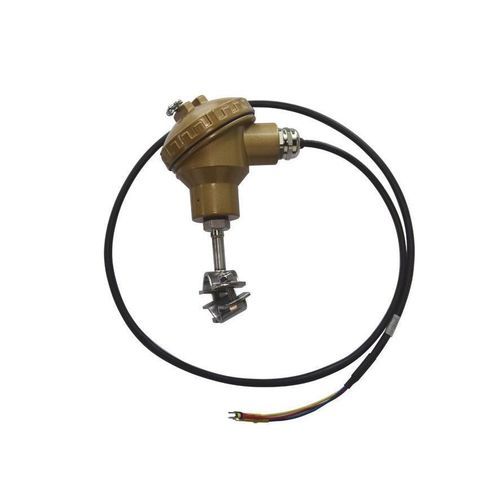

Current output temperature transmitter CS-TT05

4-20 mAanalogprocess

The CS-TT05 temperature transmitter is a general-purpose transmitter with a conventional probe design, suitable for a wide range of temperature measurement applications.

Product overview
The CS-TT05 is designed for general temperature measurement. It uses a conventional probe structure and is available with different temperature ranges and probe lengths to meet operational requirements.

Key features

• Probe length configurable on request
• Measurement range: -100 to 60 °C
• Accuracy: ±2 °C
• Output: three-wire 4–20 mA
• Electrical connection: direct cable outlet
• Process connection: 1" pipe external clamp
• Accurate measurement suitable for volume deployment

Applications

• General temperature measurement
• Measurement and control systems
• Temperature-regulated water supply systems

Performance parameters

• Reference temperature: 25 °C
• Supply voltage: 12 VDC
• Relative humidity: 45%–75%
• Atmospheric pressure: 86–106 kPa

Mechanical design and wiring

• Product page provides dimensional and wiring diagrams (figures include wiring definitions and mechanical outlines)

Manual

• A dedicated manual (PDF) is available on the product page for download and review

Summary / specifications

• Model: CS-TT05
• Probe: length configurable
• Measurement range: -100 to 60 °C
• Accuracy: ±2 °C
• Output signal: three-wire 4–20 mA
• Electrical connection: direct cable outlet
• Process connection: 1" pipe external clamp
• Operating environment: relative humidity 45%–75%, atmospheric pressure 86–106 kPa
• Supply: 12 VDC
