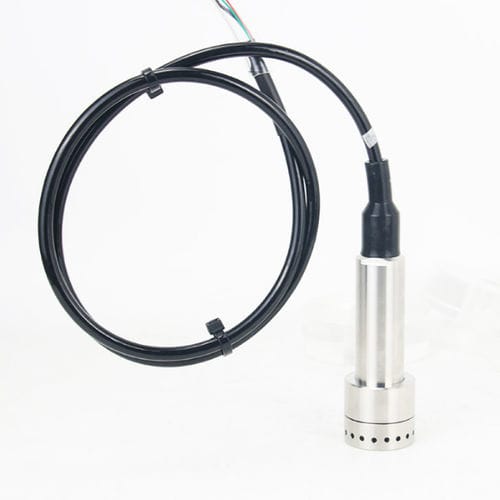

Piezoresistive level transmitter YLT323

for sludgefor waterliquid

YUNYI Level Transmitter has been designed for the highest re-quirements of level measurement.Owing to their high accuracy, reliability and their ex-cellent media resistance, it is the ideasolution for almost al level measurements in wa-terworks, reservoir, oil refineries, chemical plantsglass, sewage treatment plant, dy-namic level measurement etc. 1>Range:0~1 M…200 M H20 optional 2>Output:4~20mA/0~5V/1~5V/0.5~4.5V/SDI-12/0~10V/mV signal/R5485 3>Power supply:12-30VDC/10-30VDC5-10VDC/12VDC/5VDC15% 4>Pressure port: 040 mm Thread with filter cover IP68 5>Accuracy : 0.25%FS, 0.5%FS optional 6>Working temperature : 30°C~70°C 7>Cable : PE Cable(Water Proof) ; PU Cable(Oil/Fuel Proof) ; FEP Cable Description This is a fully submersible liquid level sensor suitable for measuring the liquid level of wastewater or sewage. It consists of GE piezoresistive sensing components imported from the United States and packaged in a 316 stainless steel casing. All stainless steel, sealed shell, suitable for long-term immersion in most industrial wastewater and wastewater. Applications ●lrrigation Equipment ●Wastewater tre atment and biogas production ●Retention Ponds Monitoring ●Canals and Dams Monitor Systems ●Control of Lift and Pumping Stations ●Level Measurement in waste water channels ●Agricultural applications hydrostatic level control Features ●lmported GE core, 0.5% F.S ●316L stainless steel diaphragm ●Welded316SS body construction shock and erosion ●Custom level ranges from 1m to 200m ●Filter with 20 pores design to ensure sensitivity ●IP68 full sealed plastic waterproof design ●Optional Lifetime Lightning Prote ction ●Custom PU. PE or FEP cable lengths
