Magnetic field generator DXHC25-100

electromagnetic fieldcomputer-controlled

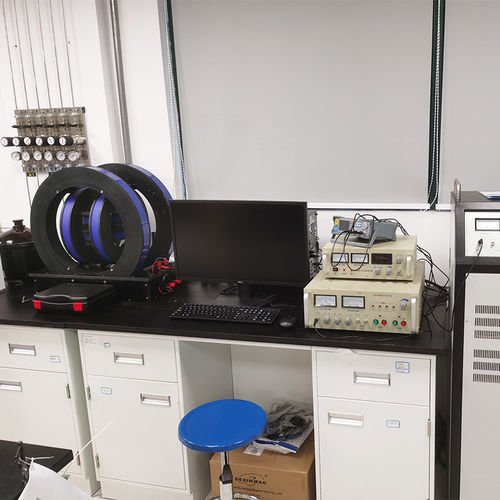

The Magnetic field control systems are generally divided into electromagnet systems and Helmholtz coil systems. It can provide the corresponding frequency and peak magnetic field required by customers. The electromagnetic field control platform is mainly composed of Helmholtz coils and a programmed Gauss meter and power supply. These devices are connected to the computer through a serial cable and then control the system through the upper computer software in the computer. System Composition: Helmholtz coil: An AC magnetic field of a certain frequency can be divided into one, two, and three dimensions Power supply: Signal generator + power amplifier, frequency, and waveform are adjustable; Power supply with single waveform (mostly sine wave), frequency adjustable Gaussmeter: measuring ac and DC magnetic field intensity, with analog output interface, can be connected to an oscilloscope to observe waveform Control software: adjustable ac magnetic field frequency and secondary value, and real-time monitoring of magnetic field changes, magnetic field peak, frequency, and other parameters can be observed. Parameters of Helmholtz Coil The radius: 250mm Center magnetic field: 100Gs Diameter of the uniformity area: 160mm; the degree of uniformity area: 5% Diameter of the uniformity area: 125mm; the degree of uniformity area: 1% Diameter of the uniformity area: 40mm; the degree of uniformity area: 0.5% Approx. weight: 50kg
