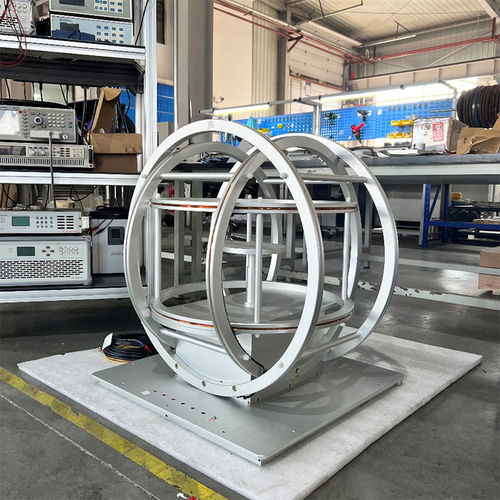

Three-axis Helmholtz coil DXHC series

magneticAC/DCcircular

Characteristics
Three-axis Helmholtz coil (DXHC series) generates orthogonal X, Y and Z magnetic fields with controllable DC and AC components. It is suited for earth-field cancellation and compensation, geomagnetic environment simulation, magnetic-shielding effect evaluation, EMI simulation experiments, calibration of Hall probes and magnetometers, biological magnetic-field research and studies of material magnetic properties.

Specification parameters

• Model family: DXHC series (multiple radius and field-strength variants).
• Radius examples: models from ~70 mm to 300 mm (DXHC7–DXHC30).
• Center field strength: approx. 2 Gs up to 1000 Gs depending on model.
• Uniformity range: from 5% down to 0.01% (model dependent).
• Homogeneous-sphere diameter examples: Φ10 mm to Φ200 mm (model dependent).
• Per-axis power: ranges from ~5 W to 5000 W depending on model.
• Weights: one-axis and three-axis weights vary by model (see model data).

Typical Cases
3DXHC10-100

• Magnetic-field axes X, Y and Z orthogonal to each other.
• Maximum field per axis: 100 Gs.
• Minimum average diameter: 200 mm.
• Uniform area: Φ25 mm.
• Uniformity: 0.1%.
• Power supply: 300–800 W.

3DXHC15-30

• Magnetic-field axes X, Y and Z orthogonal to each other.
• Maximum field per axis: 30 Gs.
• Minimum average diameter: 300 mm.
• Uniform area: Φ40 mm.
• Uniformity: 0.1%.
• Power supply: 120 W per axis.

3DXHC20-10

• Magnetic-field axes X, Y and Z orthogonal to each other.
• Maximum field per axis: 10 Gs.
• Minimum average diameter: 400 mm.
• Uniform area: Φ100 mm.
• Uniformity: 1%.
• Power supply: 300–800 W.

3DXHC21-25

• Center field per axis: 25 Gs.
• Minimum diameter: 420 mm; maximum diameter: 650 mm.
• Uniform area: Φ60×60 mm.
• Uniformity: 1×10⁻3.
• Maximum power supply: 300 W.

Additional Notes and Schematic
The product documentation includes a schematic of the magnetic-field control system and examples of 3D shielding-cylinder coils used to obtain low weak fields inside shielding tubes. A three-dimensional shielding-tube coil can combine four axial coils and two groups of saddle (radial) coils, and may be supplemented with first- and second-order gradient-combination coils for improved field shaping.

Technical features

• Axes: 3-axis (X, Y, Z) orthogonal magnetic-field generation.
• Applications: earth-field cancellation/compensation, geomagnetic simulation, magnetic-shielding testing, EMI simulation, Hall-probe and magnetometer calibration, biological-field research, material magnetic-property research.
• Available center fields: ~2 Gs to 1000 Gs depending on model.
• Uniformity: typical 5% down to 0.01% depending on model and size.
• Homogeneous sphere diameters: examples from Φ10 mm to Φ200 mm.
• Per-axis power and weights vary by model; consult model data for exact figures.
