Magnetic coil Open Space 3D H&M Composite Coil 3DXHC50-01
currenthigh-powerpower

Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power - image - 2
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power - image - 3
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power - image - 4
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power - image - 5
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power - image - 6
Magnetic coil - Open Space 3D H&M Composite Coil 3DXHC50-01 - Xiamen Dexing Magnet Tech. Co., Ltd. - current / high-power / power - image - 7
Add to favorites
Compare this product
Go to the Xiamen Dexing Magnet Tech. Co., Ltd. website for more information

Characteristics

Technology
magnetic
Electrical characteristics
current, high-power, power
Configuration
square
Applications
for laboratory, measuring, for industrial applications, for electronics
Other characteristics
copper wire, three-axis, enameled round copper wire
Primary current

Max.: 90 A

Min.: 15 A

Description

Overview
  • Gradient magnetic field coils generate spatially linearly varying magnetic fields and can be designed in multiple geometries (for example Maxwell coils) to achieve very high magnetic field linearity and power efficiency. They can be implemented as coaxial coil pairs, multi-electromagnet assemblies or gradient pole / magnetic pole arrangements to obtain one-, two- or three-dimensional gradient fields.


Features
  • Gradient coils generate spatially linearly varying magnetic fields.
  • Gradient magnitude adjustable by changing current.
  • Gradient spatial position adjustable via current distribution.
  • Suitable for magnetic particle traction and precise particle positioning.
  • Applicable to imaging and measurement equipment based on magnetic principles.


Applications
  • Physical experiments
  • Magnetic imaging
  • Industrial inspection
  • Sensor calibration
  • Magnetic drive systems


Case 1 — High gradient field electromagnetic coil module
  • Excitation coil: 0.1*200 Litz wire, 150 turns, 3 layers
  • Receiver coil: 0.2mm enameled wire, 270 turns
  • Focusing coil 1: Magnetic field strength: 45mT@16A
  • Focusing coil 2: Magnetic field strength: 22mT@16A
  • Gradient permanent magnet: Center gradient better than 2T/m
  • External compensation receiver coil: winding same as the receiving coil
  • External compensation excitation coil: winding same as the excitation coil
  • Aluminum alloy non-magnetic table: chemical and physical plate platform, movable, two layers, 600×550×580 mm (width×depth×height)

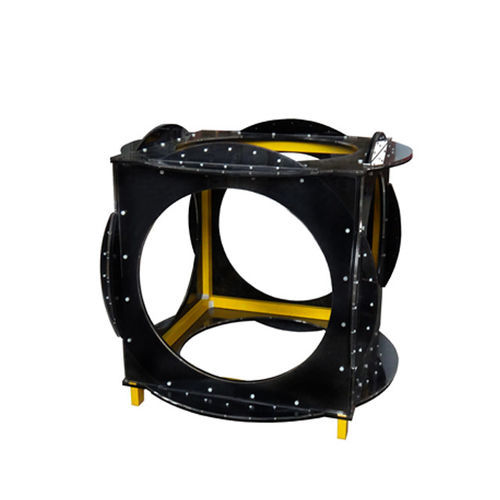

Case 2 — Open Space 3D H&M Composite Coil 3DXHC50-01
  • Uniform Magnetic Field Winding:
    • Resistance (X axis): 7.5Ω
    • Resistance (Y axis): 11Ω
    • Resistance (Z axis): 11Ω
    • Current (X,Y,Z): 15A
    • Power (X axis): 2250W
    • Power (Y axis): 3000W
    • Power (Z axis): 3000W
  • Gradient Magnetic Field Winding:
    • Resistance (X): 0.96Ω
    • Resistance (Y): 1.4Ω
    • Resistance (Z): 1.4Ω
    • Current (X): 90A
    • Current (Y,Z): 60A
    • Power (X): 10000W
    • Power (Y,Z): 6500W
  • Uniform Magnetic Field Strength: 7.5mT
  • Gradient Magnetic Field Strength: 0.12T/m
  • Envelope Size: 1000×1000×1000 mm
  • Opening Size: 600×600 mm
  • Total Mass: 1100Kg


Technical specifications
  • Product type: Gradient magnetic field coils (examples include Maxwell coil configurations and multi-electromagnet radial-gradient arrangements)
  • Typical uses: one-, two- and three-dimensional gradient field generation; imaging; particle focusing and adjustment
  • Adjustability: gradient magnitude and position adjustable via current and current distribution
  • Example model: Open Space 3D H&M Composite Coil 3DXHC50-01
  • Example performance (Case 1): focusing coil field strengths up to 45mT@16A and center gradient >2T/m
  • Example performance (Case 2): uniform field 7.5mT; gradient 0.12T/m; envelope 1000×1000×1000 mm; opening 600×600 mm; total mass ~1100Kg
