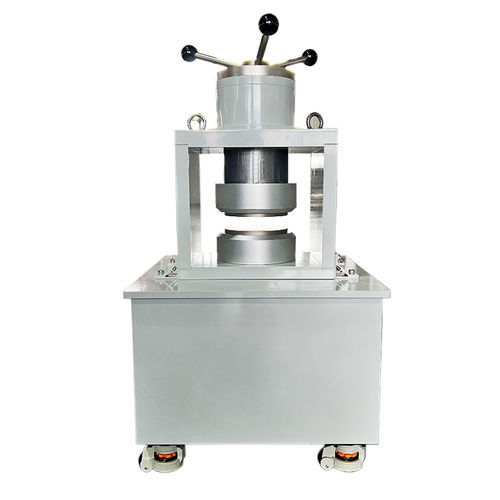

Electronic equipment magnet Adjustable Magnetic Field Permanent Magnet

for calibrationfor sensorshigh-performance

Overview

Adjustable Magnetic Field permanent magnet units provide a continuously tunable DC magnetic field by mechanically changing the pole air gap or the magnetic-circuit geometry. They keep the advantages of permanent magnets (no excitation power) while enabling precise field setting for laboratory and industrial use where a stable, adjustable DC field is required.

DXT100-08

• Type: Adjustable air-gap permanent magnet.
• Operation: Field is reduced by increasing the distance between poles; simple structure and operation.
• Pole surface diameter: 100 mm; air gap adjustable 10–100 mm; magnetic field adjustable approximately 0.2–0.8 T.

DXT40-0059

• Type: Low-field adjustable permanent magnet.
• Operation: Field varied by changing the width of the magnetic-circuit channel; air gap fixed with stable pole relative positions.
• Dimensions: 140 × 65 × 180 mm; pole surface diameter: Φ40 mm; air gap: 15 mm; weight: 5 kg.
• Field: Central field continuously adjustable from 16 to 590 Gs with ~1 Gs adjustment resolution.
• Uniformity: Spatial uniformity in 10 × 10 × 10 mm volume — 590 Gs = 1.6%; 16 Gs = 6%.

DXT150-12

• Type: Adjustable air-gap permanent magnet.
• Operation: Field adjusted by changing the air gap; straightforward design and handling.
• Pole diameter: 150 mm; pole surface diameter: 100 mm; air gap adjustable 10–100 mm; magnetic field adjustable approximately 0.28–1.2 T.

DXS-1.2

• Type: Double magnetic-axis adjustable permanent magnet.
• Operation: Adjusts field by modifying the magnetic circuit without moving relative pole positions; offers electromagnet-like functions without excitation power.
• Dimensions: 200 × 150 × 200 mm; weight: 13 kg.
• Details: Double-axis (horizontal) configuration; pole surface diameter: Φ8 mm; air gap adjustable 5–25 mm; at 5 mm gap maximum field ~1.2 T; field adjustable 0 to ~1.1 T; motorized/step control can achieve ~1 Gs precision in low-field range.

DXS50-1

• Type: Double magnetic-axis adjustable permanent magnet.
• Operation: Continuous field adjustment with fine resolution (<1 Gs) and zero-crossing capability.
• Pole surface diameter: 50 mm; working air gap range 5–100 mm.
• Field examples by gap: at 5 mm: 0 to ±1.0 T; at 10 mm: 0 to ±0.5 T; at 25 mm: 0 to ±0.2 T.

DXD-09

• Type: Single-pole adjustable magnetic-field generator.
• Operation & features: Constructed from high-strength permanent magnetic materials with an adjustable mechanism and integrated field measurement; open platform for in-situ continuous adjustment and real-time digital field display.
• Field: Platform field adjustable 0–0.9 T (digital display).
• Applications: Suitable for DC adjustable-field tasks including anti-interference testing of electric energy meters and other laboratory or production tests.

Technical characteristics / specifications

• Adjustment mechanisms: change pole air gap or modify magnetic-circuit width/geometry; some designs adjust field without moving relative pole positions.
• Adjustment modes: manual mechanical control or motorized (reducer/stepper) for precise positioning and fine adjustment (precision can reach ~1 Gs in low-field models).
• Magnetic capability: models cover ranges from low gauss (tens of Gs) up to ~1.2 T depending on model and gap.
• Air gap ranges: typical adjustable spans from ~5 mm to 100 mm depending on model.
• Pole surface diameters: available variants from small (Φ8 mm) to large (Φ40 mm, Φ50 mm, Φ100 mm, Φ150 mm) to suit sample size and uniformity needs.
• Form factors & weights: compact laboratory footprints with weights from ~5 kg to ~13 kg for selected models.
• Field uniformity & resolution: selected low-field models provide good spatial uniformity in small volumes and 1 Gs-level adjustment accuracy; some support continuous zero-crossing adjustment.
• Typical applications: laboratory testing, material characterization, magnetic-field dependent experiments, anti-interference testing for meters, and any DC adjustable-field requirement where permanent-magnet reliability and no excitation power are advantageous.
