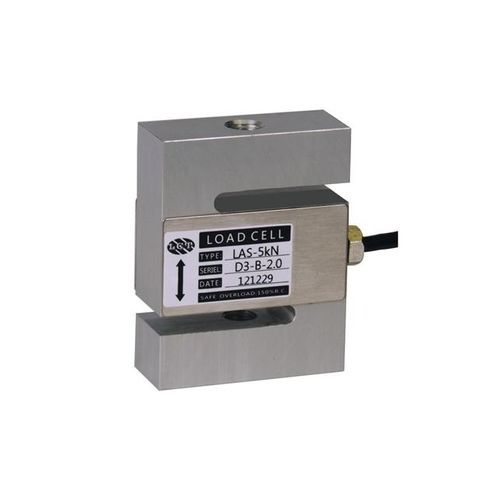

Tension/compression load cell LAS-D3
S-beamstrain gaugeweighing

tension/compression load cell
tension/compression load cell
Add to favorites
Compare this product


Characteristics

Type
tension/compression
Form
S-beam
Technology
strain gauge
Applications
weighing, for hopper
Other characteristics
aluminum construction
Rated load

Max.: 1,000 kg
(2,204.62 lb)

Min.: 100 kg
(220.46 lb)

Description

Features S-type load cells accuracy:0.03% R.O. aluminum construction with surface anodized environment protection class:IP66 Applications crane scales hopper scales tensile testing test benches machine testing Description LCT S-type Load Cells have been designed for measuring static and dynamic tensile and compressive forces. Advantages of LCT S-type Load Cells: Quick to install thanks to off-center load compensation at the factory (per OIML R60),and you benefit from a new generation of high-precision, S-type load cells. Be it force measurement in machines, test benches and production lines or tests in development: LCT S-type load cells are the reliable and safe choice for precise force measurement - providing compelling benefits for you. Model LAS-D3 load cells are designed to this “S-type”and manufactured from high quality aluminum alloy of aviation standard. LAS-D3 load cells can be used to measure loads range from 100kg to 1000kg with the measuring accuracy of 0.03% R.O.( R.O.=Rated Output) and 2mV/V output signal. LAS-D3 load cells are mainly used for crane scales,hopper scales,tensile testing,test benches and machine testing.

Catalogs

LAS-D3
LAS-D3
1 Pages
