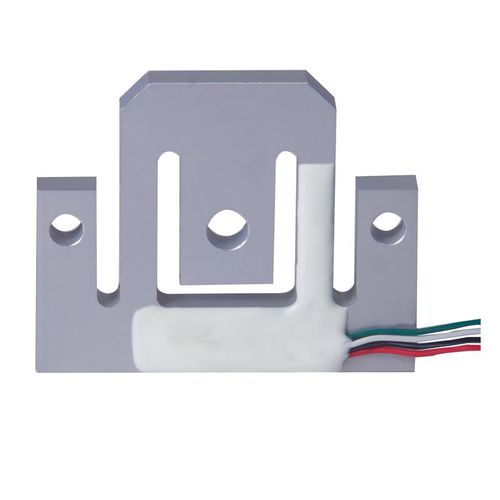

Planar beam load cell LAA-W7
strain gaugealuminumIP65

planar beam load cell
planar beam load cell
Add to favorites
Compare this product


Characteristics

Form
planar beam
Technology
strain gauge
Other characteristics
aluminum, IP65
Rated load

75 kg, 150 kg, 300 kg
(165.35 lb, 330.69 lb, 661.39 lb)

Description

Features planar beam load cells accuracy:0.05%R.O. very low profile matched output aluminum construction with surface anodized environment protection class:IP65 Applications retail scales medical scales personal scales bathroom scales airport baggage scales postal scales any weighing environment where space is a limiting factor. Description LCT Planar beamload cells have been designed such that their excellent mechanical and measurement properties can be optimally used in a wide range of applications. They are designed for those who need to produce equipment with minimal overall height. They are usually implemented in sets of three or four per scale. Advantages of LCT Planar beam load cells: Most planar beams are not corner-adjusted. Using 3 or 4 Planar beam load cells is an alternative to a single point load cell configuration with the additional benefit of a practical unlimited platform size. Model LAA-W7 load cells are designed to this “Planar beam”type and manufactured from high quality aluminum alloy of aviation standard. LAA-W7 load cells can be used to measure loads range from 75kg to 300kg with the measuring accuracy of 0.05% R.O.( R.O.=Rated Output) LAA-W7 load cells are mainly used for retail scales, medical scales,personal scales,bathroom scales,airport baggage scales,postal scales and any weighing environment where space is a limiting factor.

Catalogs

LAA-W7
LAA-W7
1 Pages
