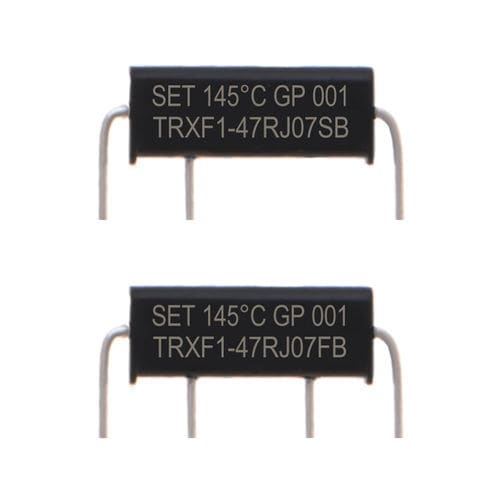

Wire-wound resistor TRXF1 series

with overcurrent protectionintegratedthrough-hole

SETsafe | SETfuse Thermal-link & Fusing Resistor (TRXF) is an active protection integrated component with Over Temp. and Over Current Protections, in which Alloy Thermal-Link (ATCO) is built in the core of Fusible Wirewound Resistor (RXF) and forming special connection with RXF. TRXF is used in products such as general lighting, smart homes, small power home appliances, personal care application, security & protection. SETsafe | SETfuse TRXF is not only able to proceed over temp. protection by ATCO itself but also proceed over current protection by RXF transferring heat to ATCO to open the circuit. TRXF1 series Rated Resistance from 0.47 Ω to 800 Ω, Rated Functioning Temp.: 115 °C to 150 °C, safety certification includes cURus, TUV, CCC and complies with RoHS and REACH. Features ● Over Temp. Protection ● Over Current Protection ● Surge Protection ● RoHS & REACH Compliant Applications ● Electric Blanket ● Battery ● LED Drive
