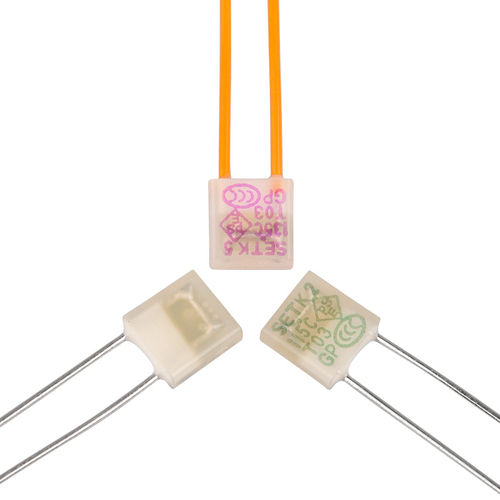

Thermal fuse-link K series

radialbatteryfor lighting

Thermal-Link (ATCO)-Alloy Type is defined as a non-resettable protective device functioning one time only. It is widely used in electrical equipment. ATCO is mainly consist of fusible alloy, flux resin, case, sealant and lead wires. Normally, fusible alloy is jointed to the two lead wires. Under abnormal conditions, when the temp. reaches to the fusing temp. of ATCO, the fusible alloy melts and quickly retracts to the two lead wire ends with the aid of the flux resin and disconnects the circuit completely. SETsafe | SETfuse Thermal-Link (ATCO)-Alloy Type K series Rated Functioning Temp. from 76 ℃ to 221 ℃, Rated Current: 2 A, 4 A, safety certification Includes UL, cUL, TUV, PSE, VDE, KC, CCC, and complies with RoHS and REACH Features ● Non-Resettable ● High Accuracy of Functioning Temp. ● RoHS & REACH Compliant Applications ● Lamps ● Switched-Mode Power Supplies ● Home Electrical Appliances ● Transformers ● Motors ● Batteries Customization ● Other Temp. ● The Length of Lead Wires ● Taping Packing Available ● Lead Wires can be Insulated ● Tinned Copper Wires or CP Wires ● Leads Forming Types
