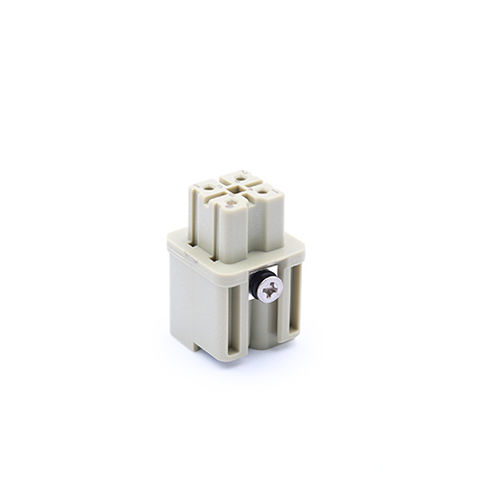

Data connector HA-003-FQspringcurrentvoltage
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- spring
- Electrical characteristics
- insulation, voltage, current
- Material
- copper, gold, silver
- Product applications
- ground, gauge
- Primary current
10 A
- Voltage
4 V, 230 V, 400 V
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 125 °C
(257 °F)
Description
Number of contacts - 3+PE
- Rated current - 10A
- Rated voltage conductor-ground - 230V
- Rated voltage conductor-conductor - 400V
- Rated impulse voltage - 4KV
- Pollution degree - 3
- or - 10A 250V 4kV 3
Rated voltage acc. to UL - 600V
Insulation resistance - ≥1010Ω
Material - polycarbonate
Limiting temperatures - -40℃...+125℃
Flammability acc. to UL 94 - V0
Mechanical working life(mating cycles) - ≥500
Contacts
Material - copper alloy
Surface - hard-silver plated
hard-gold plated
Contact resistance - ≤1mΩ
Termingal - Spring terminal(Quick-in)
- Wire gauge - 0.5-2.5mm2
- AWG - 20-14
- Stripping length - 10±0.5mm
- Contact resistance - ≤3mΩ
