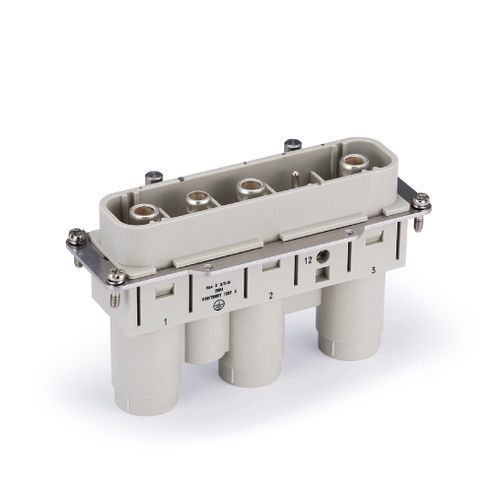

Data connector HK-003/0-M

hexagonalscrewpower

Number of contacts - 3/0+PE Electrical data acc. to EN 61 984 - Power area - ---Pollution degree - 3 ---Pollution degree 2 also - 200A 2000V 12kV 2 Insulation resistance - ≥1010Ω Material - polycarbonate Flammability acc. to UL 94 - V0 Mechanical working life(mating cycles) - ≥500 Contacts Material - copper alloy Surface - silver Contact resistance - ≤0.2mΩ For stranded wire acc. to IEC 60 228 Class 5 - Axial screw termination - Power contacts - ---Wire gauge - 35-70mm² ---AWG - 2-00 ---Hexagonal driver - SW5 ---Stripping length - 22mm ---Tightening torque - mm² 35 50 70 - N.m 8 9 10 PE contact - ---Wire gauge - 16-35mm² ---AWG - 5-2 ---Hexagonal driver - SW4 ---Stripping length - 14mm ---Tightening torque - 6Nm
