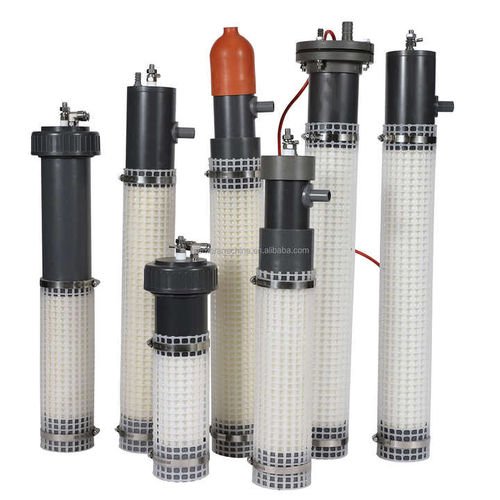

Tubular anode cell

for automobilesfor agricultural machineryfor furniture

Advanced Anode Cell Technology for Superior Electrocoating Processes Overview Anode Cells, also known as Anolyte Cells, are critical components in cathodic electrophoretic coating (e-coating) systems. They are used to isolate the anode from the paint bath while allowing ions to pass through a selective membrane. This ensures consistent bath quality and improves the durability and appearance of the final coating. Working Principle The Anode Cell consists of an internal titanium anode and an ion-exchange membrane. When a DC voltage is applied, positively charged ions (such as amines and other counter-ions from the e-coating bath) migrate through the membrane into the anolyte solution. This process: Maintains the bath's pH balance Improves paint stability Reduces contamination and paint defects Key Features Membrane Material: High chemical resistance, excellent ion-selective permeability Electrode: Stainless steel with long service life Anolyte Circulation System: Ensures efficient ion removal and heat dissipation Leak-Proof Design: Ensures safe operation and prevents cross-contamination
