Crane wire rope IWR

for miningsteelflexible

Product Overview

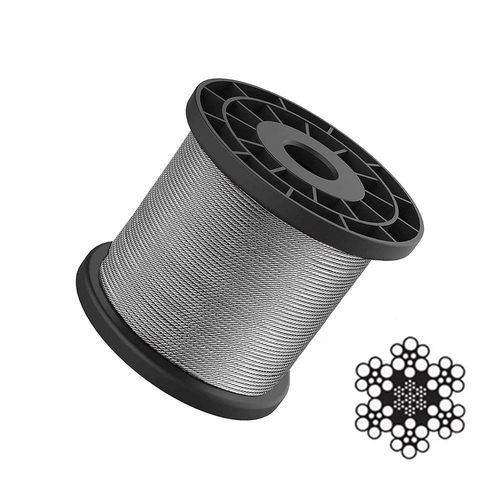

The 6×9W+IWR wire rope features a 6-strand Warrington (W) line-contact construction with 9 wires per strand and a steel wire rope core (IWR). It is designed for demanding hoisting and load-bearing applications where high breaking strength and wear resistance are required.

Performance Characteristics

• Strength: The steel wire rope core (IWR) increases overall rope strength and anti-extrusion capacity while preserving the line-contact benefits of the Warrington construction.
• Flexibility: Compared with non-IWR constructions, flexibility is moderately reduced due to the steel core, yet the rope remains suitable for industrial hoisting and heavy-duty applications.
• Wear resistance: The line-contact Warrington profile combined with the IWR core provides enhanced resistance to surface wear and abrasion in high-wear environments.

Application Characteristics
Commonly used as main hoisting ropes for heavy-duty cranes, mine shaft main hoists, high-speed elevator hoisting ropes and other critical lifting systems where strength, fatigue resistance and wear performance are essential.

Marketing Message
When applications cannot compromise on tensile strength, wear resistance or fatigue life, the 6×9W+IWR construction offers a balanced solution; custom configurations and competitive commercial terms can be provided to meet project requirements.

Parameters (table extracted from product page)
NOMINAL DIAMETER | APPROX. WEIGHT (kg/100m) | NOMINAL TENSILE STRENGTH OF ROPE (MPa): 1570 1670 1770 1870 1960
MINIMUM BREAKING LOAD
Columns sequence (as on source table): D | KG/100M (col1) | KG/100M (col2) | KG/100M (col3) | then a sequence of (kN) values corresponding to minimum breaking loads for the tensile strength columns shown in the header, presented in the original table order.
2 | 1.4 | 1.38 | 1.55 | 2.08 | 2.25 | 2.22 | 2.4 | 2.35 | 2.54 | 2.48 | 2.69 | 2.6 | 2.81
3 | 3.16 | 3.1 | 3.48 | 4.69 | 5.07 | 4.99 | 5.4 | 5.29 | 5.72 | 5.59 | 6.04 | 5.86 | 6.33
4 | 5.62 | 5.5 | 6.19 | 8.34 | 9.02 | 8.87 | 9.59 | 9.4 | 10.2 | 9.93 | 10.7 | 10.4 | 11.3
5 | 8.78 | 8.6 | 9.68 | 13 | 14.1 | 13.9 | 15 | 14.7 | 15.9 | 15.5 | 16.8 | 16.3 | 17.6
6 | 12.6 | 12.4 | 13.9 | 18.8 | 20.3 | 20 | 21.6 | 21.2 | 22.9 | 22.4 | 24.2 | 23.4 | 25.3
7 | 17.2 | 16.9 | 19 | 25.5 | 27.6 | 27.2 | 29.4 | 28.8 | 31.1 | 30.4 | 32.9 | 31.9 | 34.5
8 | 22.5 | 22 | 24.8 | 33.4 | 36.1 | 35.5 | 38.4 | 37.6 | 40.7 | 39.7 | 43 | 41.7 | 45
9 | 28.4 | 27.9 | 31.3 | 42.2 | 45.7 | 44.9 | 48.6 | 47.6 | 51.5 | 50.3 | 54.4 | 52.7 | 57
10 | 35.1 | 34.4 | 38.7 | 52.1 | 56.4 | 55.4 | 60 | 58.8 | 63.5 | 62.1 | 67.1 | 65.1 | 70.4
11 | 42.5 | 41.6 | 46.8 | 63.1 | 68.2 | 67.1 | 72.5 | 71.1 | 76.9 | 75.1 | 81.2 | 78.7 | 85.1
12 | 50.5 | 49.5 | 55.7 | 75.1 | 81.2 | 79.8 | 86.3 | 84.6 | 91.5 | 89.4 | 96.7 | 93.7 | 101
13 | 59.3 | 58.1 | 65.4 | 88.1 | 95.3 | 93.7 | 101 | 99.3 | 107 | 105 | 113 | 110 | 119
14 | 68.8 | 67.4 | 75.9 | 102 | 110 | 109 | 118 | 115 | 125 | 122 | 132 | 128 | 138
16 | 89.9 | 88.1 | 99.1 | 133 | 144 | 142 | 153 | 150 | 163 | 159 | 172 | 167 | 180
17 | 101 | 99.4 | 112 | 151 | 163 | 160 | 173 | 170 | 184 | 179 | 194 | 188 | 203
18 | 114 | 112 | 125 | 169 | 183 | 180 | 194 | 190 | 206 | 201 | 218 | 21 |

Technical specifications

• Structure: 6×9W (Warrington line-contact) with steel wire rope core (IWR).
• Core type: Steel wire rope core (IWR).
• Wire per strand: 9 wires per strand; 6 strands total.
• Performance: Increased tensile strength and anti-extrusion ability, improved wear resistance; flexibility is moderately reduced compared with non-IWR constructions.
• Typical applications: Main hoisting ropes for heavy-duty cranes, mine shaft hoists, high-speed elevator hoisting ropes and other critical lifting systems.
• Available tensile strength grades: 1570 MPa, 1670 MPa, 1770 MPa, 1870 MPa, 1960 MPa.
• Nominal diameters: entries provided from 2 mm up to 18 mm and corresponding breaking-load data.
• Mass and minimum breaking load: Detailed mass (kg/100m) and minimum breaking load (kN) values are listed in the parameter table above.
