Crane wire rope IWS

for miningsteelrigid

Product

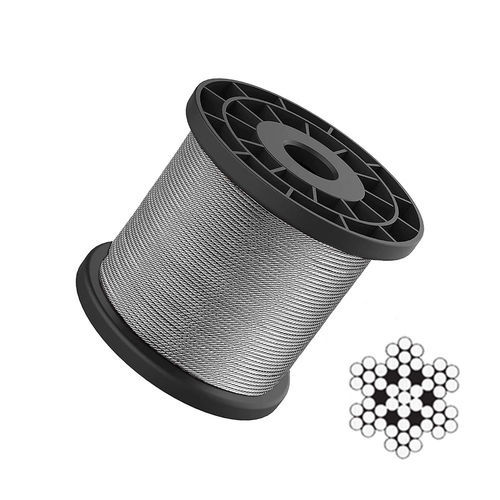

6×7+IWS steel wire rope

Overview
Similar to the 6×7+FC, this rope features a point-contact construction with six strands of seven wires each and an IWS (steel wire strand) core. The steel strand core increases resistance to extrusion and maintains rope integrity under high compressive and contact loads, making it suitable for heavy-duty, low-bend applications.

Performance Features

• Strength: Steel strand core improves anti-extrusion capacity and overall breaking strength, providing stability under heavy loads.
• Flexibility: Lower flexibility than fiber-core ropes; adequate for applications with limited bending cycles.
• Wear resistance: Enhanced resistance to wear and surface damage under high external pressure and frictional loads.
• Application characteristics: Commonly used in mine hoisting machines, non-frequently bent sections of port cranes and other anti-extrusion, high-strength uses.
• Design note: Suited for heavy-duty environments where high tensile performance and anti-extrusion properties are required.

Parameters (excerpt from manufacturer table)
Header: NA L DIAMETER MM | APPROX. WEIGHT KG/100M | NOMINAL TENSILE STRENGTH OF ROPE (MPA) (1570, 1670, 1770, 1870, 1960) and corresponding MINIMUM BREAKING LOAD (kN).

Table rows:
2 mm | 1.4, 1.38, 1.55, 2.08, 2.25, 2.22, 2.4, 2.35, 2.54, 2.48, 2.69, 2.6, 2.81
3 mm | 3.16, 3.1, 3.48, 4.69, 5.07, 4.99, 5.4, 5.29, 5.72, 5.59, 6.04, 5.86, 6.33
4 mm | 5.62, 5.5, 6.19, 8.34, 9.02, 8.87, 9.59, 9.4, 10.2, 9.93, 10.7, 10.4, 11.3
5 mm | 8.78, 8.6, 9.68, 13, 14.1, 13.9, 15, 14.7, 15.9, 15.5, 16.8, 16.3, 17.6
6 mm | 12.6, 12.4, 13.9, 18.8, 20.3, 20, 21.6, 21.2, 22.9, 22.4, 24.2, 23.4, 25.3
7 mm | 17.2, 16.9, 19, 25.5, 27.6, 27.2, 29.4, 28.8, 31.1, 30.4, 32.9, 31.9, 34.5
8 mm | 22.5, 22, 24.8, 33.4, 36.1, 35.5, 38.4, 37.6, 40.7, 39.7, 43, 41.7, 45
9 mm | 28.4, 27.9, 31.3, 42.2, 45.7, 44.9, 48.6, 47.6, 51.5, 50.3, 54.4, 52.7, 57
10 mm | 35.1, 34.4, 38.7, 52.1, 56.4, 55.4, 60, 58.8, 63.5, 62.1, 67.1, 65.1, 70.4
11 mm | 42.5, 41.6, 46.8, 63.1, 68.2, 67.1, 72.5, 71.1, 76.9, 75.1, 81.2, 78.7, 85.1
12 mm | 50.5, 49.5, 55.7, 75.1, 81.2, 79.8, 86.3, 84.6, 91.5, 89.4, 96.7, 93.7, 101
13 mm | 59.3, 58.1, 65.4, 88.1, 95.3, 93.7, 101, 99.3, 107, 105, 113, 110, 119
14 mm | 68.8, 67.4, 75.9, 102, 110, 109, 118, 115, 125, 122, 132, 128, 138
16 mm | 89.9, 88.1, 99.1, 133, 144, 142, 153, 150, 163, 159, 172, 167, 180
17 mm | 101, 99.4, 112, 151, 163, 160, 173, 170, 184, 179, 194, 188, 203
18 mm | 114, 112, 125, 169, 183, 180, 194, 190, 206, 201, 218, 21

Standards
Manufacturer lists applicable standards (table and parameter formats as shown above).

Technical specifications

• Construction: 6 strands × 7 wires per strand + IWS (steel wire strand core)
• Core: Steel wire strand core (IWS)
• Wire contact type: Point-contact strand construction
• Primary nominal tensile strength grades: 1570, 1670, 1770, 1870, 1960 MPa
• Typical applications: Mine hoisting machines, non-frequently bent sections of port cranes, other heavy-duty anti-extrusion uses
• Relative flexibility: Less flexible than fiber-core ropes; suitable for many industrial applications with limited bending
• Wear resistance: Improved by steel strand core for operations with high pressure and frictional loads
• Available nominal diameters (mm): 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 17, 18 (other sizes may be available)
• Approximate weights (kg/100m) and minimum breaking loads (kN) per diameter and tensile grade: see parameter table above
