Steel wire rope W+FC

flexible

Overview

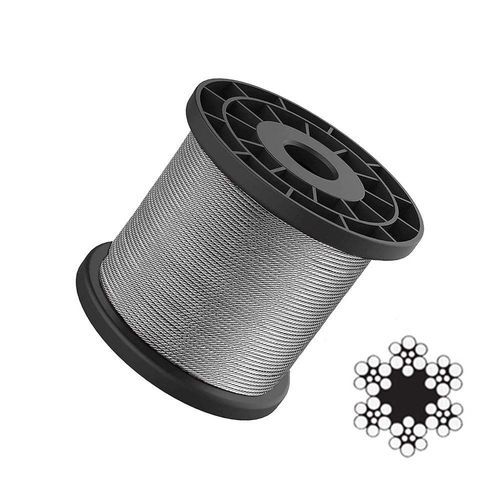

Made up of 6 strands having 9 wires in Warrington (W) pattern, it has a line-contact structure. A fiber core (FC) is utilized in the construction.

Performance Characteristics

• Strength: The line-contact Warrington construction disperses stress more uniformly. Under identical diameter and strength level, it offers higher actual load-bearing capacity and improved fatigue resistance compared to the 6×7 construction. With a fiber core, its strength is lower than the same construction with a metal core.
• Flexibility: The fiber core provides good flexibility, making the rope suitable for applications requiring frequent bending.
• Wear Resistance: The line-contact structure produces more uniform wear when in contact with pulleys and drums, giving better wear resistance than the point-contact 6×7 structure.

Application Characteristics
Appropriate for applications requiring good flexibility and a degree of fatigue resistance, such as certain elevator hoisting ropes and lifting equipment with elevated demands for bending performance.

Parameter (tabulated data)
NOMINAL DIAMETER | APPROX. WEIGHT (KG/100M) | NOMINAL TENSILE STRENGTH OF ROPE (MPA): 1570 / 1670 / 1770 / 1870 / 1960
MINIMUM BREAKING LOAD (KN)
Header: D | NF | SF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC
MM | KG/100M | (KN)
2 | 1.4 | 1.38 1.55 2.08 2.25 2.22 2.4 2.35 2.54 2.48 2.69 2.6 2.81
3 | 3.16 | 3.1 3.48 4.69 5.07 4.99 5.4 5.29 5.72 5.59 6.04 5.86 6.33
4 | 5.62 | 5.5 6.19 8.34 9.02 8.87 9.59 9.4 10.2 9.93 10.7 10.4 11.3
5 | 8.78 | 8.6 9.68 13 14.1 13.9 15 14.7 15.9 15.5 16.8 16.3 17.6
6 | 12.6 | 12.4 13.9 18.8 20.3 20 21.6 21.2 22.9 22.4 24.2 23.4 25.3
7 | 17.2 | 16.9 19 25.5 27.6 27.2 29.4 28.8 31.1 30.4 32.9 31.9 34.5
8 | 22.5 | 22 24.8 33.4 36.1 35.5 38.4 37.6 40.7 39.7 43 41.7 45
9 | 28.4 | 27.9 31.3 42.2 45.7 44.9 48.6 47.6 51.5 50.3 54.4 52.7 57
10 | 35.1 | 34.4 38.7 52.1 56.4 55.4 60 58.8 63.5 62.1 67.1 65.1 70.4
11 | 42.5 | 41.6 46.8 63.1 68.2 67.1 72.5 71.1 76.9 75.1 81.2 78.7 85.1
12 | 50.5 | 49.5 55.7 75.1 81.2 79.8 86.3 84.6 91.5 89.4 96.7 93.7 101
13 | 59.3 | 58.1 65.4 88.1 95.3 93.7 101 99.3 107 105 113 110 119
14 | 68.8 | 67.4 75.9 102 110 109 118 115 125 122 132 128 138
16 | 89.9 | 88.1 99.1 133 144 142 153 150 163 159 172 167 180
17 | 101 | 99.4 112 151 163 160 173 170 184 179 194 188 203
18 | 114 | 112 125 169 183 180 194 190 206 201 218 21
