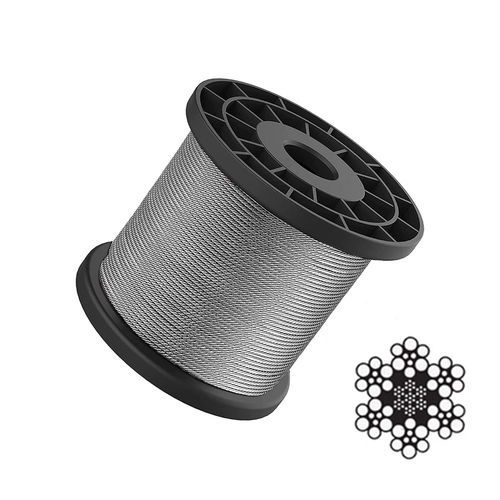

Steel wire rope

stainless steelgalvanised steelzinc-plated steel

Product Overview
6×7 construction general purpose wire rope is available with FC (fibre core) or WSC (wire strand core). When supplied with a WSC the rope is commonly referred to as 7×7. The rope is very flexible at small diameters (0.5–2 mm) and becomes increasingly rigid from approx. 6 mm upwards; larger diameters are often used for non-working stays (e.g., mast stays). Available in galvanised and marine-grade stainless steel.

Introduction

• Material: high carbon steel; also available in stainless steel grades 304 and 316.
• Cores: FC (fibre core) or WSC (wire strand core).
• Finishes: bright, electro-galvanized, hot-dipped galvanized; marine-grade stainless options.
• Typical diameter range: 0.5 mm – 18+ mm; small diameters remain flexible, larger diameters become stiff.

Parameter
NOMINAL DIAMETER | APPROX. WEIGHT (KG/100M) | MINIMUM BREAKING LOAD (kN) (values vary by construction and tensile grade)
Header: MM | KG/100M | (kN) sequence for tensile grades 1570(IWR/IWS),1570(FC),1670(IWR/IWS),1670(FC),1770(IWR/IWS),1770(FC),1870(IWR/IWS),1870(FC),1960(IWR/IWS),1960(FC), ...
2 | 1.4 | 1.38 | 1.55 | 2.08 | 2.25 | 2.22 | 2.4 | 2.35 | 2.54 | 2.48 | 2.69 | 2.6 | 2.81
3 | 3.16 | 3.1 | 3.48 | 4.69 | 5.07 | 4.99 | 5.4 | 5.29 | 5.72 | 5.59 | 6.04 | 5.86 | 6.33
4 | 5.62 | 5.5 | 6.19 | 8.34 | 9.02 | 8.87 | 9.59 | 9.4 | 10.2 | 9.93 | 10.7 | 10.4 | 11.3
5 | 8.78 | 8.6 | 9.68 | 13 | 14.1 | 13.9 | 15 | 14.7 | 15.9 | 15.5 | 16.8 | 16.3 | 17.6
6 | 12.6 | 12.4 | 13.9 | 18.8 | 20.3 | 20 | 21.6 | 21.2 | 22.9 | 22.4 | 24.2 | 23.4 | 25.3
7 | 17.2 | 16.9 | 19 | 25.5 | 27.6 | 27.2 | 29.4 | 28.8 | 31.1 | 30.4 | 32.9 | 31.9 | 34.5
8 | 22.5 | 22 | 24.8 | 33.4 | 36.1 | 35.5 | 38.4 | 37.6 | 40.7 | 39.7 | 43 | 41.7 | 45
9 | 28.4 | 27.9 | 31.3 | 42.2 | 45.7 | 44.9 | 48.6 | 47.6 | 51.5 | 50.3 | 54.4 | 52.7 | 57
10 | 35.1 | 34.4 | 38.7 | 52.1 | 56.4 | 55.4 | 60 | 58.8 | 63.5 | 62.1 | 67.1 | 65.1 | 70.4
11 | 42.5 | 41.6 | 46.8 | 63.1 | 68.2 | 67.1 | 72.5 | 71.1 | 76.9 | 75.1 | 81.2 | 78.7 | 85.1
12 | 50.5 | 49.5 | 55.7 | 75.1 | 81.2 | 79.8 | 86.3 | 84.6 | 91.5 | 89.4 | 96.7 | 93.7 | 101
13 | 59.3 | 58.1 | 65.4 | 88.1 | 95.3 | 93.7 | 101 | 99.3 | 107 | 105 | 113 | 110 | 119
14 | 68.8 | 67.4 | 75.9 | 102 | 110 | 109 | 118 | 115 | 125 | 122 | 132 | 128 | 138
16 | 89.9 | 88.1 | 99.1 | 133 | 144 | 142 | 153 | 150 | 163 | 159 | 172 | 167 | 180
17 | 101 | 99.4 | 112 | 151 | 163 | 160 | 173 | 170 | 184 | 179 | 194 | 188 | 203
18 | 114 | 112 | 125 | 169 | 183 | 180 | 194 | 190 | 206 | 201 | 218 | 21 (table shows further values)

Characteristics / technical specifications

• Construction: 6×7 or 6×9 (7×7 designation used when supplied with WSC).
• Cores: FC (fibre core) or WSC (wire strand core).
• Materials: high carbon steel; also available in stainless steel grades 304 and 316.
• Finishes: bright, electro-galvanized, hot-dipped galvanized; marine-grade stainless options.
• Behavior: very flexible at small diameters (0.5–2 mm); becomes rigid/stiff at diameters ≥6 mm; larger diameters often used for non-working stays (e.g., mast stays).
• Detailed approximate weights (kg/100m) and minimum breaking loads (kN) provided per diameter and tensile grade in the Parameter section.
