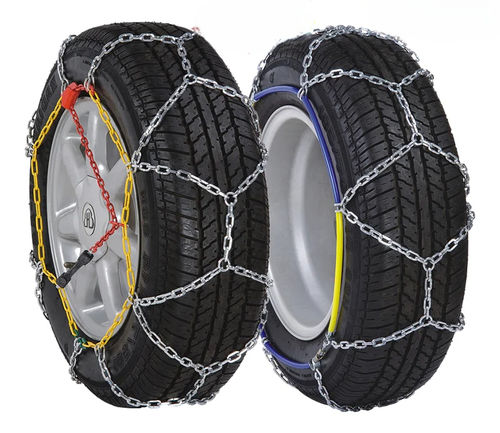

13" snow chain KN series

14"10"15"

Overview

• Net-type design providing high traction and allowing fitting without moving the vehicle
• D-profile crosspieces for improved grip on ice, snow and soft hail
• Diamond tire chain pattern to reduce vibration and noise during driving

Introduction

• Net-type construction for broad contact distribution and simplified installation while stationary
• D-profile crosspieces positioned to enhance bite on slippery surfaces
• Diamond pattern that balances traction and ride comfort by limiting vibration and noise

Parameter
Product page includes a parameter image for reference (product dimensions and detailed parameter graphics shown on the page).

Standards
ITEM NO -> TIRE SIZE
KN 010 -> 145-10; 125-12; 150/65-315; 145/70-12
KN 020 -> 135-12; 135-13; 140-12; 145-12; 150-12; 135/70-13; 145/70-13; 150/65-340; 155/65-13; 155/70-12; 160/60-315
KN 030 -> 125-15; 135-14; 145-13; 155-12; 560-12; 600-12; 155/70-13; 160/65-340; 165/60-13; 165/70-12; 175/60-13
KN 040 -> 135-15; 145-14; 155-13; 165/60-14; 165/65-14; 165/70-13; 170/65-340; 175/60-14; 175/65-13; 180/60-340; 180/65-315; 185/60-13; 190/55-340; 195/55-13
KN 045 -> 175/60-14; 155/65-15; 185/55-14
KN 050 -> 145-15; 155-14; 165-13; 170-13; 520-14; 560-13; 560-14; 590-13; 165/70-14; 170/65-365; 175/65-14; 175/70-13; 180/65-340; 185/60-14; 185/65-13; 190/55-365
KN 060 -> 155-15; 165-14; 175-13; 560-15; 600-15; 640-13; 165/75-14; 175/70-14; 180/65-365; 185/55-15; 185/65-14; 185/70-13; 195/50-15; 195/60-14; 195/60-365; 195/65-13; 205/60-13; 200/65-340
KN 065 -> 185/70-14; 185/60-15; 215/40-16; 205/55-14; 195/55-15; 205/50-15
KN 070 -> 165-15; 175-14; 185-13; 175/70-15; 175/75-14; 180/65-390; 185/60-15; 185/65-15; 185/70-14; 195/55-15; 195/60-15; 195/65-14; 195/70-13; 200/55-390; 200/60-365; 205/50-15; 205/55-15; 205/60-14; 210/55-365; 185-14; 205/45-16
KN 080 -> 175-15; 185-14; 185/70-15; 190/65-390; 195/65-15; 195/70-14; 200/60-390; 205/55-16; 205/60-15; 205/65-14; 205/70-13; 210/55-390; 210/65-365; 220/50-365; 225/55-14; 215/45-17; 205/50-16
KN 090 -> 180-15; 185-15; 195-14; 205-14; 195/70-15; 235/45-17; 205/65-15; 205/70-14; 215/60-15; 220/55-390; 225/50-16
KN 095 -> 235/60-14; 195/75-15; 205/65-16; 215/50-17; 205/70-15; 215/55-16; 225/45-17; 215/65-15; 245/40-17; 225/60-15; 235/55-15; 225/50-16
KN 100 -> 195-15; 235/60-15; 215/70-14; 205/70-15; 215/70-15; 240/55-390; 225/60-15; FR78-15; 215/60-16; 205/65-16; 215/55-16
KN 110 -> 225/60-16; 215/60-16; 225/65-15; 225/55-16; 235/55-16; 225/50-17; 235/40-18; 225/55-17; 215/55-17
KN 120 -> 225/70-15; 235/60-16; 235/50-18; 245/45-18; 245/45-17
KN 130 -> 245/60-15; 245/55-16; 255/50-16; 235/55-17; 245/50-17; 275/40-17; 225/65-17
KN 140 -> 225/75-16; 245/70-16; 245/75-16; 265-15; 265/70-15; 275/60-15

Technical specifications

• Brand: TOPONE CHAIN
• Model / Commercial name: KN SNOW CHAIN
• Design: Net-type construction
• Fitting: Installation without moving the vehicle
• Crosspieces: D-profile crosspieces for grip on ice, snow and soft hail
• Pattern: Diamond tire chain pattern to limit vibration and noise
• Available sizes: KN 010 through KN 140 (see Standards)
