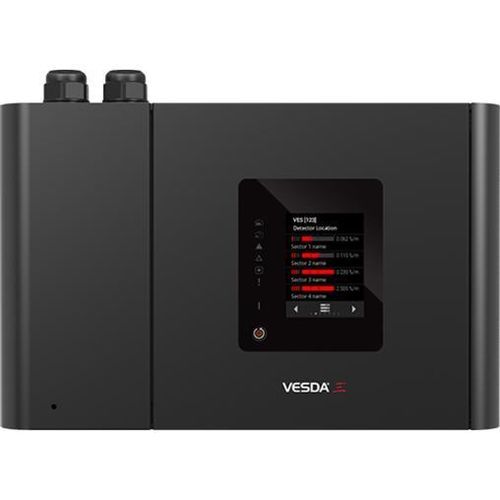

Laser smoke detector VESDA-E VES

suctionwith LCD displayindoor

Overview
The VESDA-E VES provides sector-addressable aspirating smoke detection, enabling individual sampling pipe monitoring so a single protected zone can be divided into up to four separate sectors. Sector addressability reduces the search area for faster response. Each pipe supports four programmable alarm thresholds (Alert, Action, Fire 1, Fire 2). After the first sector reaches Alert the detector continues to sample all sectors and reports real-time sector status via the touch-screen display. Built on Flair detection technology, the VESDA-E VES delivers very early warning with best-in-class dust rejection and stable performance over lifetime.

Model Numbers

• VES-A00-P
• VES-A10-P
• VES-A00-P-NF
• VES-A10-P-NF
• VES-A00-P-CH
• VES-A10-P-CH
• VES-A00-P-UL
• VES-A10-P-UL
• VES-A00-P-KR-UL
• VES-A10-P-KR-UL

Key Features

• Sector addressability for up to four sectors (individual sampling pipe monitoring)
• Adaptive scan threshold
• Flair detection technology for reliable very early warning with minimal nuisance alarms
• Short-wavelength laser detection for high sensitivity to small-particle scattering
• No drift compensation required due to focused light directed at the target
• High stability across temperature and time
• Multi-stage filtration and optical protection with clean air barriers to preserve detection performance
• Four configurable alarm levels per sector and wide sensitivity range
• Intuitive LCD touch display for instant status and configuration
• Flow-fault thresholds per port to accommodate varying airflow conditions
• Smart on-board filter that retains dust count and remaining filter life for predictable maintenance
• Extensive event log (20,000 events) for diagnostics and analysis
• AutoLearn™ smoke and flow for rapid, reliable commissioning
• Backward compatible with VLS and VESDAnet
• Ethernet connectivity for configuration and secondary monitoring with Xtralis software
• USB for PC configuration and firmware upgrade via memory stick
• Two programmable GPIs (one monitored) for flexible remote control
• Field-replaceable sub-assemblies for faster service and maximum uptime

Applications

• Data center
• Warehouse
• Prison / Correctional facility
• Airport
• Clean room
• Large atrium

Certifications & Approvals (examples listed)

• FM
• VdS (EN54-20)
• AFNOR
• CE
• UKCA
• ActivFire (ISO 7240-20)
• BOMBA
• RCM
• UL 268 7th Edition
• ULC
• CSFM
• FDA
• FCC
• KFI

Available Resources / Documents (names shown on product page)

• VESDA-E VES Technical Data Sheet
• VESDA-E VES-A00-P Product Guide
• VESDA-E VES-A10-P Product Guide
• VESDA-E VES Engineering Specifications
• VESDA-E VES Installation Sheet
• VESDA Prisons and Correctional Facilities Design Guide
• VESDA-E FAQs
• VESDA-E Product Brochure
• VESDA-E Pocket Guide
• VESDA Model Comparison Chart
• Various UL268 7th Edition resources and product bulletins

Videos (examples)

• VESDA-E VES Introductory Video
• VESDA-E VES: How to Program the VES Detector with VSC
• VESDA-E VES: How to Read the VES 3.5 inch LCD Display
• VESDA-E VES: How to Wire Up the VES Detector
• Service and commissioning videos (filter replacement, mounting, module replacement, aspirator, interfacing, AutoConfig, etc.)

Specifications

• Sector addressability: up to 4 sectors (individual sampling pipe monitoring)
• Alarm thresholds: 4 programmable levels per pipe (Alert, Action, Fire 1, Fire 2)
• Detection technology: Flair short-wavelength laser-based detection
• Event log capacity: 20,000 events
• Connectivity: Ethernet, USB
• Remote control: 2 programmable GPIs (1 monitored)
• Maintenance: Smart on-board filter (dust count and remaining filter life)
• Commissioning: AutoLearn™ smoke and flow
• Compatibility: Backward compatible with VLS and VESDAnet
• Field serviceability: Field-replaceable sub-assemblies
