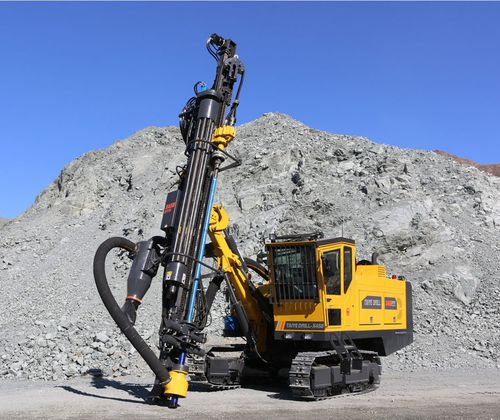

Blasthole drilling rig TAIYE-X45-DTH

rotaryhydraulicautomatic

TAIYE-X45-DTH integrated hydraulic drilling rig,efficient,energy-saving,environment-friendly.It is suit for drilling blasthole in open-pit mine and quarries,covers a hole diameter 90-140mm. TAIYE-X45-DTH drilling rig is a hydra drilling machine which is equipped with two-stage screw compressor which is imported from USA.The compresor has a stable pressure and plenty flow,ensure hig-speed pnetration speed and saving energy at the same time.The main structrual parts is made of Q345 steel which is more durable and wearproof. 1. Automatic Rod-changer Automatic rode-changer, the number of storage rods is 5+1 pieces.With 3m or 4m rod,the hole depth can be 18 or 24m.It has a simple structure,easy to maintainence. 2. Walking Motor Using Doosan walking motor with a 350mm widened track plate, this kind of DTH rig machine has strong power and great grade ability. The chassis of this series adopts a hydraulic leveling mechanism, which has strong adaptability to working conditions and is durable. 3. Rotary Reducer The rotary power head is equipped with shock absorber to extend the service life of the rotary mechanism and the impact device
