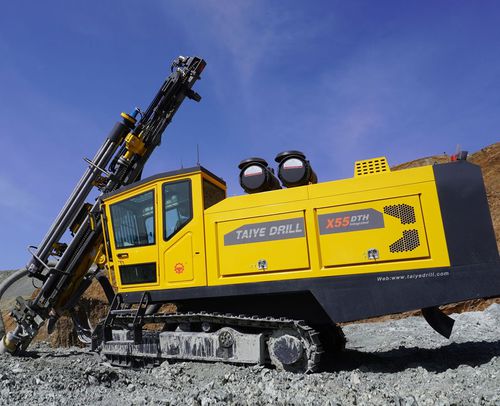

Crawler drilling rig TAIYE-X55

rotarydown-the-holehydraulic

TAIYE-X55 Crawler-mounted Remote Control Integrated Drilling Rig adopts a new design concept, integrating drilling, gas supply, and power systems. It uses high-end electro-hydraulic control technology to match the overall power from power-pump-load-air supply. Combining with the solid mechanical structure manufacturing level of Taiye Company, this series of DTH boring machine realizes the integration of man, machine, and working conditions, and perfectly combines the reliability, flexibility, comfort, and safety of the product. It is a trustworthy surface Down-The-Hole drilling machine. 1. Load sensing variable pump The drilling and walking operation system of the drilling rig adopts load-sensitive variable pump with hydraulic control multi-way valve and hydraulic control pilot handle. The system is perfectly matched, and the control is sensitive and accurate, energy saving, and cost reduction. 2. Engine It is matched with Yuchai engine, the engine displacement is 8.424L, and the two-stage working speed is 1200/1850rpm, respectively. The idle speed and the drilling speed are matched with right gear, which reduces fuel consumption compared with the previous single-speed design. 3. Automatic Rod-changer The drilling rig is equipped with a 3-meter automatic rod-changer, which can advance 3-meter drill rods at a time. The operation is simple and flexible, which minimizes auxiliary work time, reduces auxiliary manpower, eliminates safety hazards, and directly reduces investment costs. Equipped with a remote control system, it is suitable for remote operation of the drilling rig within a range of 100 meters, and is suitable for dangerous working conditions.
