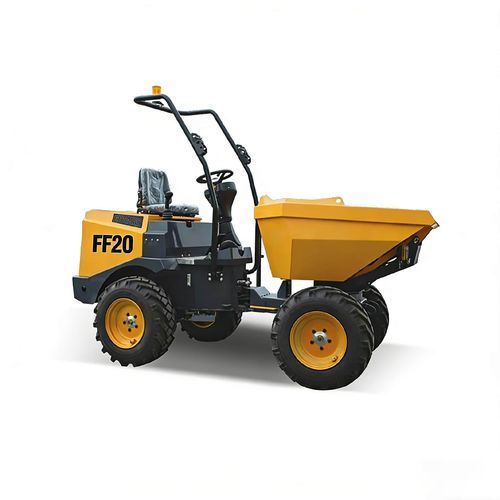

Rubber-tired dumper FF20

dieselrotating dischargewith lift-and-swivel skip

Overview
The FF20 Site Dumper by FMAN is a compact construction transport vehicle for sites, mining areas and small-scale earthmoving. With a 1.28 m³ cargo box and narrow overall dimensions, it is designed for efficient short-distance material transport and operation in confined or complex terrain.

Engine & performance
Standard specification lists Kubota D1105 (25HP/2800 rpm). Optional engine references include CHANG CHAI 390 (39HP/2600 rpm) and Weichai. Fuel type: diesel. Fuel tank: 35 L. Travel speed: 12 km/h. Climbing ability: 30°. Suitable for high-frequency loading cycles and short-haul site transport.

Engine options & notes
Multiple engine variants appear in the technical data (Kubota D1105, CHANG CHAI 390, Weichai). Emission standards: China Stage II / Euro V. Confirm engine model and rated power with the supplier when ordering.

Hopper and tipping system
Cargo box capacity: 1.28 m³ (container 1730 × 1280 × 600 mm). Hydraulic tipper with 90° tilt and 180° container rotation. Unloading height: 750 mm. Ground clearance: 290 mm. Turning radius: 5000 mm. Overturning distance: 610 mm. Maximum load: 2000 kg. Total weight: 2500 kg.

Applications and benefits
The FF20 is suited to small and medium construction crews needing reliable short-distance material transport on site. It offers simple operation and maintenance, effective loading/unloading cycles and good manoeuvrability in restricted spaces.

Recommended models

• FF35 Site Dumper
• FF50 Site Dumper
• FF20 Site Dumper

Technical specifications (key)

• Model: FF20
• Brand: FMAN (Xuzhou FMAN Construction Machinery Manufacture Co., Ltd.)
• Engine model (table): Kubota D1105
• Engine type: Diesel, vertical three-cylinder, water-cooled
• Rated power: 25HP/2800 rpm
• Alternative engine option: CHANG CHAI 390, 39HP/2600 rpm
• Fuel: diesel
• Fuel tank capacity: 35 L
• Total weight: 2500 kg
• Max loading weight: 2000 kg
• Overall dimensions (L×W×H): 3760 × 1500 × 2450 mm
• Container size (L×W×H): 1730 × 1280 × 600 mm
• Cargo box capacity: 1.28 m³
• Tipping system: Hydraulic tipper
• Tilt angle: 90°
• Container rotation angle: 180°
• Unloading height: 750 mm
• Ground clearance: 290 mm
• Turning radius: 5000 mm
• Overturning distance: 610 mm
• Walking speed: 12 km/h
• Climbing ability: 30°
• Tire model: 12-16.5
• Wheelbase: 1930 mm
• Hydraulic oil: 46# anti-wear hydraulic oil; capacity 35 L
