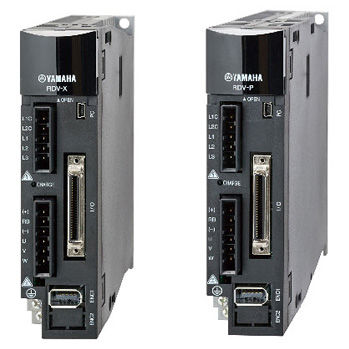

Robot driver RDV-X / RDV-P
Introduces the robot driver RDV-X and RDV-P.
RDV-X / RDV-PDedicated pulse train control. Compact body and a low price.
Controllable robots : RDV-X : FLIP-X, RDV-P : PHASER
Operating method : Pulse train
Input power : Main power 3-phase AC200V, Control power Single phase AC200V
Position detection : Incremental
Feature
Dedicated pulse train control
The dedicated pulse train control has achieved a compact body and a low price.
Position setting time reduced by 40%
The response frequency is enhanced about two times in comparison with former models. The position setting time of uniaxial robots is reduced by about 40%.Note 1
Note 1. With a 400W servomotor, 20mm ball screw lead, and portability of 40kg.
Large cost reduction possible
It is easy to assemble them in automated machinery. You can save much labor in designing, parts selection, setting and more. A large cost reduction is possible
Contributing to saving space for the whole control board
The compact design has reduced the width up to a maximum of 38% in comparison with former models. In addition, the improvement of radiation efficiency makes it possible to arrange the devices with less space in between. Multiple units can be installed side by side in a neat arrangement.
