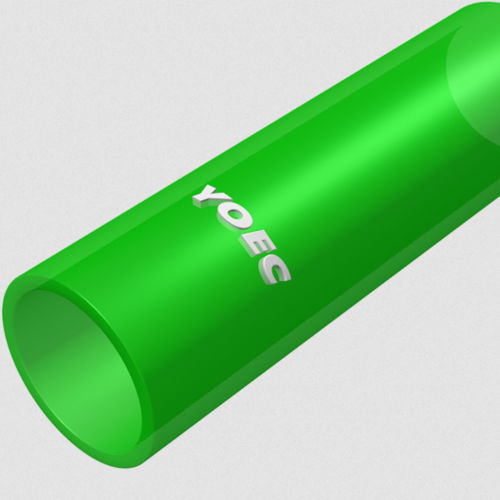

Capillary tube FDT series

YOEC fluorine-doped quartz capillary is manufactured through a high-precision stretching tower, ensuring excellent control over geometric dimensions. Length, wall thickness, fluorine doping thickness, and inner and outer diameter ratios can all be customized, meeting various applications in optics, medical, and electronics.Applications:Fiber bundle combiners - Medical probesLasersAnalytical chemistryFeatures:High-precision control over geometric dimensionsExcellent batch consistencyCustomizable fluorine concentrationCustomizable fully doped tubesCustomizable lengthTypical SpecificationsProduct TypeInner diameter (µm)Outer diameter (µm)Fluorine-Doped Layer / Inner Diameter RatioNAFDT 300/900-22300±20900±30>1.10.22±0.02FDT200/760-22200±20760±30>1.10.22±0.02FDT400/750-22400±30750±30>1.10.22±0.02FDT 850/1150-22850±301150±30>1.10.22±0.02FDT 800/1500-22800±301500±30>1.10.22±0.02FDT 500/1500-22500±301500±30>1.10.22±0.02FDT1000/1250-221000±301250±30>1.10.22±0.02(Doped Fluorine Capillary)Product TypeInner diameter (µm)Outer diameter (µm)NAFDTA 1350/1650-221350±501650±500.22±0.02FDTA 1000/1350-221000±501350±500.22±0.02FDTA 1000/1250-221000±501250±500.22±0.02FDTA 950/1100-22950±501100±500.22±0.02FDTA 850/1150-22850±501150±500.22±0.02FDTA 800/1500-22800±1001500±1000.22±0.02FDTA 450/750-22400+50/-0750±500.22±0.02Manufacturer: YOEC (Yangtze Optical Electronic Co., Ltd.)Contact: [email protected]: No. 80, Gaoxin 5th Road, East Lake New Technology Development Zone, Wuhan, ChinaTechnical Specifications / Features:High-precision stretching tower manufacturingCustomizable length, wall thickness, fluorine doping thickness, and diameter ratiosApplications in optics, medical, and electronicsExcellent batch consistencyCustomizable fluorine concentration and fully doped tubes
