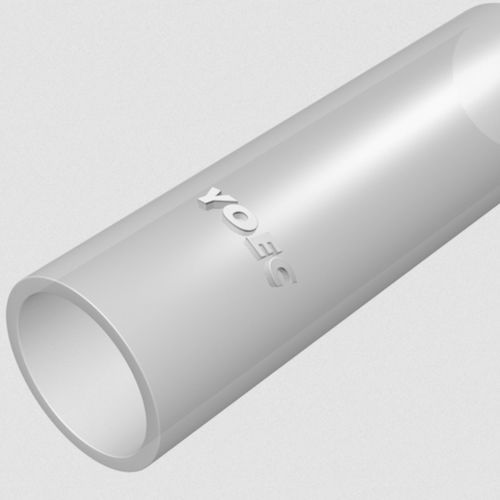

Glass capillary tube TB series

YOEC quartz capillary tubes are made of high-purity quartz glass. They are slowly fed into a high-temperature drawing furnace and controlled by a high-precision micro-pressure control system and a high-precision traction device, allowing for the production of capillary glass tubes of various geometrical dimensions. Applications: - Encapsulation sleeves for optical communication - Glass tubes for laser medical applications - Optical fiber fusion tapering - Laser medical procedures - Insulating structural components - Photonic crystal fibers Features: - High purity - Excellent geometric uniformity - Good batch consistency - Customizable in various sizes Typical Specifications: Properties | Unit | Product Specification ---|---|--- Product Type | / | TB 290/1000 | TB 950/1500 Inner diameter | µm | 290 ± 50 | 950 ± 50/-0 Outer diameter | µm | 1000 ± 50 | 1500 ± 50 Inner Hole Eccentricity | % | ≤1.2 Deflection | µm | 15 FAQ: - What material are YOEC quartz capillary tubes made of? They are made of high-purity quartz glass, ensuring excellent optical and chemical properties. - How are YOEC quartz capillary tubes manufactured? They are slowly fed into a high-temperature drawing furnace and controlled by a high-precision micro-pressure system and traction device to achieve precise dimensions. - What sizes are available for the quartz capillary tubes? The tubes are customizable in various sizes to meet specific application requirements. - What is the geometric uniformity of these tubes? YOEC capillary tubes have excellent geometric uniformity and consistent shape across batches. - Are the tubes consistent from batch to batch? Yes, they are designed for good batch-to-batch consistency. - Can these tubes be used in optical communication? Yes, they can serve as encapsulation sleeves for optical communication applications. - Are these tubes suitable for laser medical applications? Yes, they are widely used for glass tubes in laser medical procedures and optical fiber fusion tapering. - Can they be used in photonic applications? Yes, they are suitable for photonic crystal fibers and other photonic components. - Are they suitable for structural or insulating components? Yes, they can be used as insulating structural components due to their high purity and stability. - Can YOEC customize tubes for specific industrial needs? Yes, the tubes can be tailored to various dimensions and specifications according to customer requirements. Technical Specifications / Features: - Material: High-purity quartz glass - Customizable sizes - Excellent geometric uniformity - Batch-to-batch consistency - Applications: Optical communication, laser medical, photonic crystal fibers, insulating components
