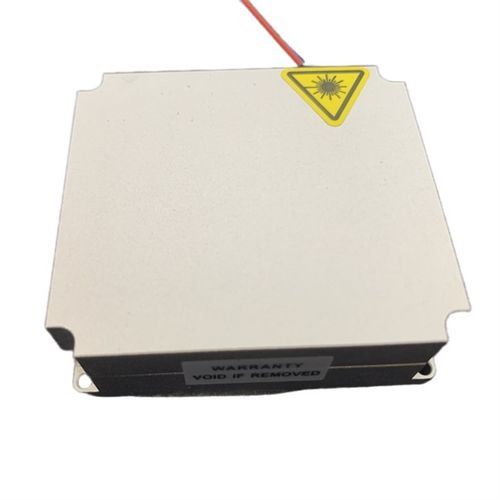

Pulsed laser module

nanosecondfiberfiber optic

Product Description
This is a 1550 nm narrow-linewidth pulsed fiber laser designed with eye-safety considerations. The module uses a MOPA (Master Oscillator Power Amplifier) architecture with a DFB semiconductor laser as the seed source. The optimized amplifier stage produces kilowatt-level peak power with nanosecond pulse widths. A monitoring output is integrated. The unit is intended as an emission source for solid-state LiDAR and for industrial fiber-optic sensing and free-space optical links.

Application

• Fiber optic sensing
• Free-space optical communication
• LiDAR (solid-state)

Features

• Kilowatt-level peak power (pulsed)
• High electro-optical conversion efficiency
• Designed for stable operation and reliable monitoring

Typical Specifications (table)
Characteristic | Unit | Minimum | Typical | Maximum
Central Wavelength | nm | - | 1550 | -
Pulse Width | ns | 1 | - | 10
Pulse Repetition Frequency | KHz | 100 | - | 2000
Monitoring Light | µW | - | 0.5 @ 100KHz, 5ns | -
Side Mode Suppression Ratio | dB | - | 25 | -
Output Pulse Peak Power | KW | - | 1 | -
Maximum Output Average Power | W | - | 1 | -
Output Light Isolation | dB | - | 40 | -
Trigger Type | - | - | External Trigger | -
Output Fiber Type | - | - | SMF-28e | -
Output Fiber Length | m | - | >0.8 (working light/monitoring light) | -
Output Fiber Connector | - | - | FC/APC | -
Operating Temperature | °C | -40 | - | 85
Storage Temperature | °C | -40 | - | 85
Dimensions | mm | - | 55*50*19 | -
Operating Voltage | VDC | - | 12 | -

Characteristics / technical specifications

• Central Wavelength: 1550 nm
• Pulse Width: 1 ns (minimum) — 10 ns (maximum)
• Pulse Repetition Frequency: 100 KHz (minimum) — 2000 KHz (maximum)
• Monitoring Light: 0.5 µW @ 100 KHz, 5 ns
• Side Mode Suppression Ratio: 25 dB
• Output Pulse Peak Power: 1 KW
• Maximum Output Average Power: 1 W
• Output Light Isolation: 40 dB
• Trigger Type: External Trigger
• Output Fiber Type: SMF-28e
• Output Fiber Length: >0.8 m (working light/monitoring light)
• Output Fiber Connector: FC/APC
• Operating Temperature: -40 to 85 °C
• Storage Temperature: -40 to 85 °C
• Dimensions: 55 × 50 × 19 mm
• Operating Voltage: 12 VDC
