Continuous laser module

continuous waveCWfiber

Product description
YOEC single-frequency narrow linewidth laser module is engineered for high-precision photonics applications that require exceptional frequency stability, ultra-narrow linewidth and low phase noise. The module delivers a highly coherent single-frequency output with a typical linewidth below 3 kHz and a center wavelength around 1550.12 nm. Its compact footprint, low power consumption and robust control enable straightforward integration into fiber-based and free-space optical systems.

Applications

• Fiber optic hydrophone systems
• Free-space optical communication
• Distributed fiber sensing

Features

• Ultra-narrow linewidth (<3 kHz)
• High frequency and wavelength stability
• Low phase noise and low RIN
• Output power 10–13 dBm (CW)

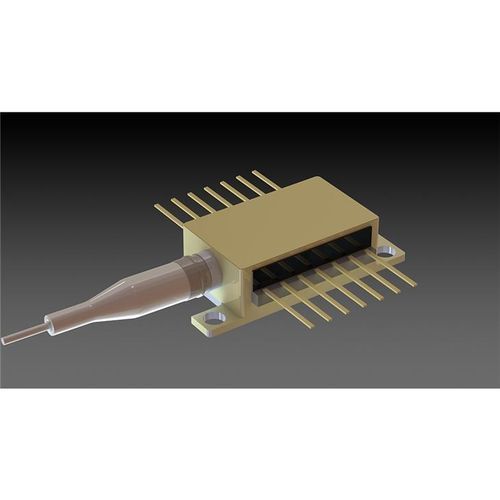

• Multiple package options: standard module, 14-pin butterfly, nano package
• Designed for long-term continuous operation

Typical specifications

• Output Power (P): 10–13 dBm (CW)
• Center Wavelength (λ): 1530–1565 nm (typ. 1550.12 nm), ITU-T ±40 pm
• Laser Linewidth (Δν): typ. 2 kHz (<3 kHz, β-line method)
• Side Mode Suppression Ratio (SMSR): 60 dB
• Polarization Extinction Ratio (PER): 20 dB
• Frequency Noise (FN): typ. 1000 Hz²/Hz (frequency offset > 1 kHz)
• Relative Intensity Noise (RIN): typ. -140 dBc/Hz (frequency offset > 10 kHz)
• Optical Isolation (ISO): 40 dB
