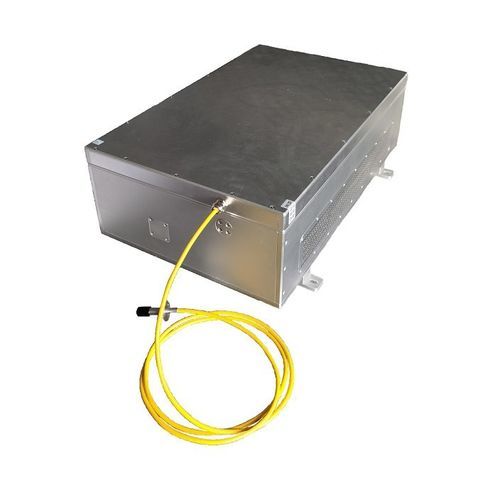

Pulsed laser source L

picosecondultra-short pulsefiber

Product overview
The L series ultrashort‑pulse fiber laser delivers a broadband supercontinuum with pulse widths at the picosecond level. Repetition rate and output power are adjustable to meet different application requirements. An external trigger is available as an option. The manufacturer can also customize pulse width, repetition rate, output power, divergence angle and other optical parameters on request.

Key features

• Picosecond‑level pulse width (customizable)
• Broad spectral output: 475–2200 nm
• Adjustable repetition rate: 100 kHz–25 MHz
• Visible output and total power options (visible 400–850 nm: 0.25 W; total: 1 W)
• High beam quality: M2 < 1.1
• Power stability <0.5% (RMS)

Applications

• Nano particles and quantum dot spectroscopy
• Characterization of nanostructures
• Solar cell and photovoltaic testing
• Image sensor and detector calibration
• Graphene and carbon nanotube studies
• Fluorescence lifetime imaging
• Ultra‑high resolution microscopy
• Optical coherence tomography (OCT)

Optical specifications
Cut‑in wavelength: 475 nm
Visible power (400–850 nm): 0.25 W
Total power: 1 W
Spectral range: 475–2200 nm
Power stability: <0.5% (RMS)
Variable repetition rate: 100 kHz - 25 MHz
Beam quality: M2 < 1.1
Polarization: Random
Intensity at cut‑in wavelength > 0.1 mW/nm

Electrical and physical properties
Length of output fiber: 1.5 m
Synchronous output signal: BNC; TTL voltage level
Operation voltage: 100–240 V; 50/60 Hz
Power consumption: < 20 W

Customization and options

• Optional external trigger
• Customizable pulse width, repetition frequency, output power and divergence angle
• Manufacturer support for optical parameter tailoring to application needs
