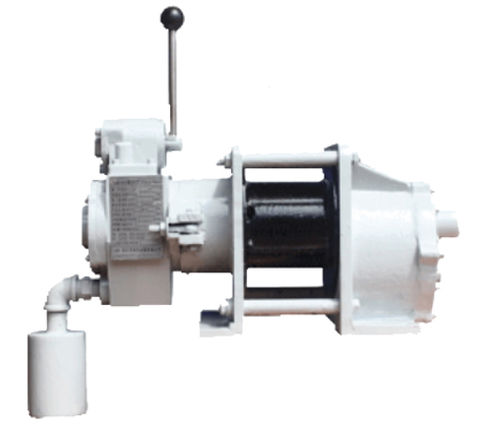

Air-operated winch JQY-3X12hoistingrotary drumlever
Add to favorites
Compare this product
Characteristics
- Operation
- air-operated
- Type
- wire rope
- Application
- hoisting
- Other characteristics
- rotary drum, lever
- Capacity
300 kg
(661.4 lb)- Speed
12,000 mm/min
(7.9 in/s)
Description
Description
Pressure of compressed air: 0.5-0.7Mpa
Hoisting load: 300kg
Testing load: 375kg
Air motor: 1.5kw*4000rpm
Rope speed :12m/min
Gas volume:2.1m3/min
Handle force:about 7.8kgf
Drum diameter: 114mm
Drum width:114mm
Drum wheel rim diameter: 120mm
Rope content:50m
Wire rope diameter:6mm
Outer dimension:520x265x270mm
