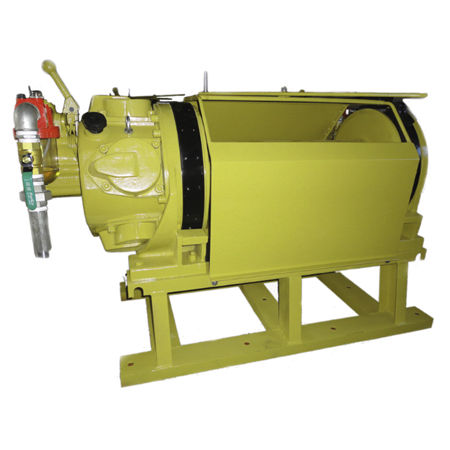

Pneumatic winch JQHSB-50X12-C685wire ropetraction
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- wire rope
- Application
- traction
- Speed
12,000 mm/min
(7.9 in/s)
Description
Description
Pressure of compressed air: 0.7Mpa
Rated traction force:50kN
Wire rope velocity:12m/min
Pneumatic motor rated povver: 15kw
Pneumatic motor piston stroke:76mm
Pneumatic motor air consumption:247L/S
Pneumantic motor cylinder number:5pcs
Drum diameter:222mm
Drum width:560mm
Drum wheel rim diameter:465mm
Rope content:300-320m
Wire rope diameter:16mm
Outer dimension:1480x914xi000mm
