DC to 3GHz
0 to 4.5dB in 0.1dB Step
2 Watt
Choice of SMA Connectors
Using advanced microstrip technology, ultra-small size
Attenuation values are adjustable in a power-on state, no
sudden big reflection.
It adopts an innovative technology, and thus it eliminates
sudden big reflection in attenuators when attenuation is
being adjusted, preventing the preliminary RF circuit from
being burnt, and keeping the system stable

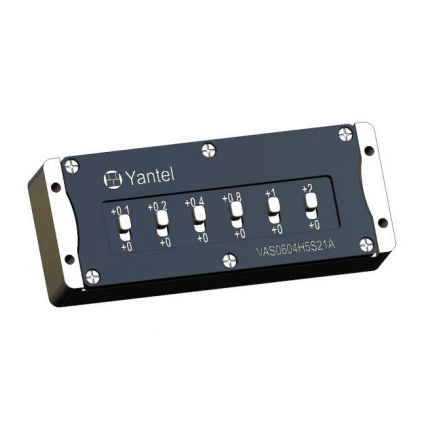

Step values: 0.1dB, 0.2dB, 0.4dB, 0.8dB, 1dB, 2dB
46 attenuation values
High attenuation accuracy, low insertion loss
High adjustment accuracy
Low cost – High Performance
Adjusting the transmitting (receiving) distance of RF
signal precisely. Adjusting accuracy is limited to 5cm.
Switch repeatability avg.> 10000 operations (5000 cycles)
per switch.
PC(Polycarbonate) Switch, operating temperature of
120℃ is available.
Attenuation values are adjustable in a power-on state,
test data can be read continuously, no interruption.
Frequency Range DC to 3GHz
Attenuation 0 to 4.5dB
Step Value 0.1dB
Insertion loss at 0dB (typ.)
0.55dB at 1 GHz
0.70dB at 2 GHz
1.0dB at 3 GHz
Attenuation Accuracy (typ.)
-0.1 to +0.50dB at 1GHz
0 to +0.9dB at 2GHz
0 to +1.6dB at 3GHz
Nominal Impedance 50 Ohm
Average Power 2 Watt
Operating Temperature -40℃ to +85℃
