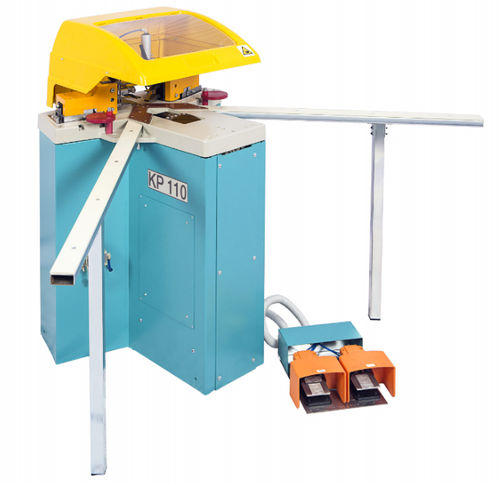

Aluminum profile corner crimping machine KP 110

pneumaticassembling

Product info
The KP 110 is designed and built for pneumatically crimping and accurate assembly of aluminium profiles. It operates with a pneumatic crimping system suitable for industrial production of frames and corners.

Product video
Demonstration video available showing KP 110 operation and key functions.

Technical specifications
Hmax: 120 mm
Wmax: 150 mm
Crimping force: 3500 kg x 2
Air consumption: 25 L/min
Operating pressure: 7-10 Bar
Dimensions (LxWxH): 123 x 195 x 131 mm
Weight: 350 Kg / 320 Kg

General features

• Pneumatic crimping system with simultaneous head stroke
• Cast-iron main body for long-term stability
• Magnetic tool-gripping system adjustable to profile shape and height
• Millimetre scale for precise knife positioning
• Double-acting bracing clamp that emerges from the table
• Hydraulically operated 90° bracing clamp for inner corners
• Left and right profile support arms and foot-pedal controls
• Operator safety guard
• Minimum inner frame assembly size: 200 x 200 mm

Standard accessories

• Sets of crimping knives: 3 mm, 5 mm, 7 mm
• 2 pneumatic vertical clamps
• 2 profile support arms
• 2 Allen keys (4 mm and 5 mm)

Optional accessories

• Special crimping knives (on request)

Characteristics / Technical specifications

• Model: KP 110
• Crimping system: Pneumatic
• Maximum crimping height (Hmax): 120 mm
• Maximum profile width (Wmax): 150 mm
• Crimping force: 3500 kg x 2
• Air consumption: 25 L/min
• Operating air pressure: 7-10 Bar
• Dimensions (mm): 123 x 195 x 131
• Machine weight: 350 Kg / 320 Kg
• Maximum profile clamping height: 140 mm
• Minimum inner frame assembly size: 200 x 200 mm
