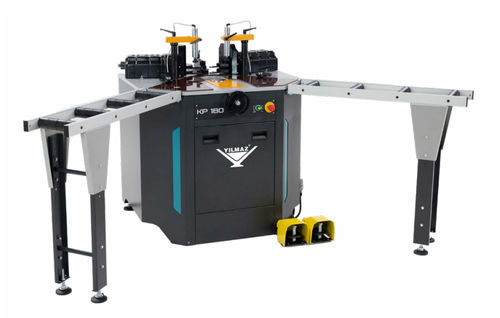

Aluminum profile corner crimping machine KP 180

manualhydraulic

Product Info
KP 180 is designed for hydraulic corner crimping and precise assembly of aluminium profiles. The machine operates with synchronous hydraulic crimping heads and pneumatic clamps to ensure controlled joining cycles.

General Features

• Hydraulic crimping system with synchronous movement of crimping heads
• Heavy steel machine table for long-term stability
• Adjustable crimping knives to suit profile shape and height
• Millimetric ruler for fine adjustment of cylinder feed and profile stops
• Pneumatic vertical clamps and hydraulic control for pressing, operated via foot pedals
• Double-acting 90° bracing clamp with retractable return under the table after crimping
• Powerful hydraulic pump: 2 × 5 tonnes
• Polyamide protection plates to prevent scratches on profile surfaces
• 'Return' push button positions cylinders close to the workpiece to shorten cycle time
• Maximum clamping capacity: H 185 mm × W 150 mm; maximum crimping height: H 180 mm
• Minimum inner frame dimension crimpable: 200 mm

Standard Accessories

• Crimping knife sets: 3 mm, 5 mm and 7 mm
• 2 × pneumatic vertical clamps
• 2 × profile support arms
• 2 × Allen keys (4 mm and 5 mm)

Optional Accessories

• Adjustable multi-knife set
• Safety guard (H:180 mm)
• Special crimping knives for custom profiles

Product Video
Demonstration video of the KP 180 operation is available on the product page (embedded video).

Technical specifications

• Machine type: Hydraulic aluminium corner crimping machine
• Crimping system: Hydraulic crimping heads with synchronous movement
• Clamping system: Pneumatic vertical clamps; double-acting 90° bracing clamp
• Hydraulic pump capacity: 2 × 5 tonnes
• Maximum profile clamping capacity: H 185 mm × W 150 mm
• Maximum crimping height: 180 mm
• Minimum crimpable inner frame: 200 mm
• Machine table: Heavy steel construction
• Standard knife sets: 3 mm, 5 mm, 7 mm
• Adjustments: Millimetric ruler for cylinder feed and profile stops; adjustable knives by profile shape/height
• Surface protection: Polyamide plates
• Operation controls: Pneumatic and hydraulic foot pedals; 'return' push button to reduce cycle time
