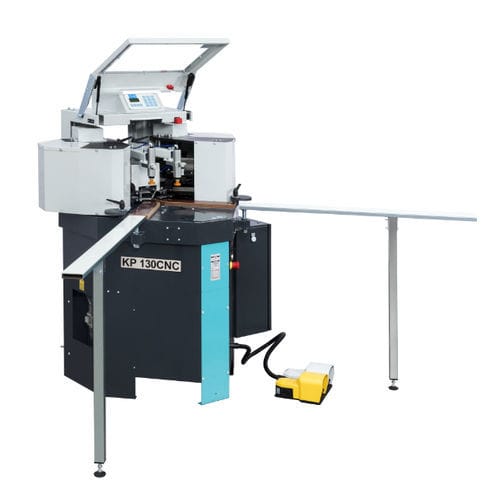

Aluminum profile corner crimping machine KP 130 CNC

fully-automaticelectrichydraulic

Product information
KP 130 CNC is a fully CNC-controlled corner crimping machine engineered to crimp and assemble aluminum profiles. The electronic control stores pressing data per profile for repeatable and programmable crimping operations.

General features

• Full CNC crimping system with memory for pressing points
• Cast iron body construction for long-term stability
• Adjustable magnetic tool-gripping system for different profile shapes and heights
• CNC automatic positioning of the profile reference fork and crimping tools; special millimeter scale for knife positioning
• Simultaneous stroke of crimping heads
• Double-acting bracing clamp emerging from the table
• Hydraulically actuated 90° bracing clamp for inner corners
• Support arms on left and right and pneumatic vertical clamps
• Foot pedals for operation control during the machining cycle and operator safety guard
• Maximum crimping height: 120 mm; Maximum profile clamping height (H): 140 mm

Standard accessories

• Sets of crimping knives: 3 mm, 5 mm and 7 mm
• 2x pneumatic vertical clamps
• 2x profile support arms
• 2x allen keys (4 mm and 5 mm)
• Bracing clamps: 20 mm and 30 mm thickness

Optional accessories

• Special crimping knives
• Uninterruptible Power Supply (UPS) ARMY-800VA

Technical specifications
Electrical: 150 W, 2 A, 220-230 V, 50 Hz
Dimensions (L x W x H): 160 x 234 x 160 mm
Weight: 630 / 580 kg

Characteristics / technical specifications

• Knife working stroke: 10.5 mm; adjustable knife stroke: 30–60 mm
• Bracing clamp stroke: 80 mm
• Control: Full CNC control with memory for pressing data
• Body: Cast iron construction
• Tool gripping: Magnetic, adjustable to profile shape and height
• Safety & operation: Operator guard and foot pedal control
• Included accessories: crimping knife sets (3, 5, 7 mm), pneumatic clamps, support arms, allen keys
